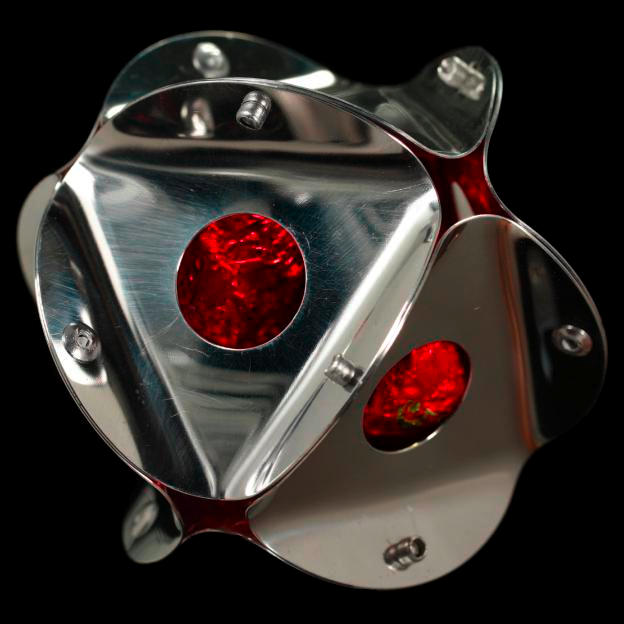

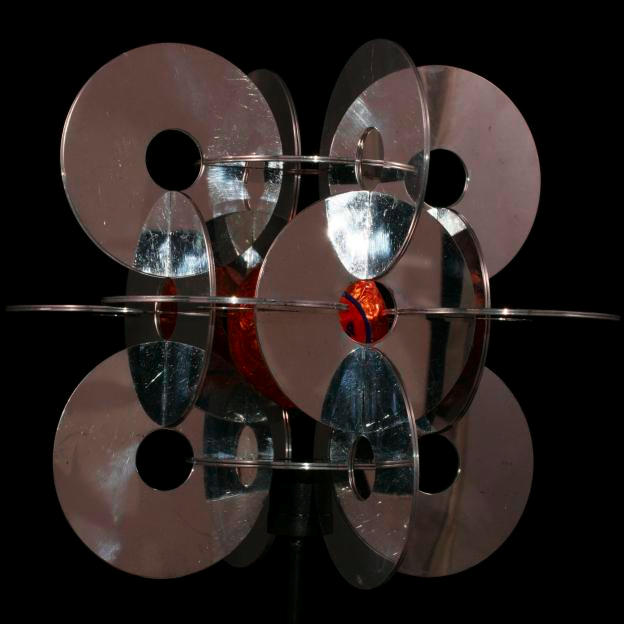

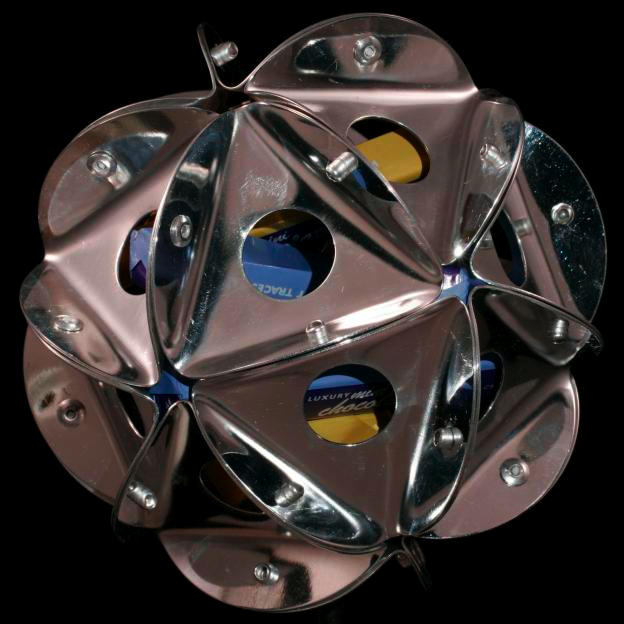

Aluminum Aluminum disk art 6Aluminum Aluminum disk art 7Aluminum Pressed sputtering targetAluminum Edge of sputtering targetAluminum Cut ingotAluminum Etched blockAluminum Ultrasonic test blockAluminum CannonAluminum Etched blockAluminum Dinner-plate sized sputtering targetsAluminum TurningsAluminum Heat sinkAluminum Mixed firefly aluminumAluminum Aluminized survival blanketAluminum Aluminum oxide grinding diskAluminum PotAluminum Chain mail artAluminum Rubber-aluminum chain mailAluminum Dentopharma aluminum compoundAluminum Lepidolite from Jensan SetAluminum Aquamarine Beryl from Jensan Set
Aluminum Sodalite from Jensan SetAluminum Ruby  from Jensan SetAluminum Bauxite from Jensan SetAluminum Aquamarine BerylAluminum Aquamarine BerylAluminum RubyAluminum YAG boule topAluminum Sapphire bouleAluminum Aquamarine BerylAluminum Tourmaline Dravite variantAluminum Corundum aluminum oxideAluminum Ruby CorundumAluminum KyaniteAluminum Corundum aluminum oxideAluminum AluniteAluminum FluelliteAluminum WavelliteAluminum VesuvianiteAluminum StauroliteAluminum WavelliteAluminum Beryl
Aluminum ChrysoberylAluminum GrossularAluminum OrthoclaseAluminum PetaliteAluminum SpinelAluminum Londonite-RhodiziteAluminum GehleniteAluminum StauroliteAluminum SpessartiteAluminum Pollucite from Jensan SetAluminum ElbaiteAluminum ManganaxiniteAluminum Photo Card Deck of the ElementsAluminum LepidoliteAluminum Londonite-RhodiziteAluminum Synthetic ruby bouleAluminum BerylAluminum StilbiteAluminum PolluciteAluminum ScoleciteAluminum Synthetic ruby boule
Aluminum Synthetic ruby bouleAluminum Metal salesman's sample pouchAluminum Allanite from Jensan SetAluminum Allanite-YAluminum AllophaneAluminum LepidoliteAluminum ElbaiteAluminum GehleniteAluminum Londonite-RhodiziteAluminum TopazAluminum Rock of alumAluminum Compact flash card hard driveAluminum Strontium aluminum master alloy rodAluminum Cooking alumAluminum Density SetAluminum PainiteAluminum TurquoiseAluminum KuliokiteAluminum KunziteAluminum Mica sheetAluminum
Aluminum
Periodic Table Poster   My periodic table poster is now available!Periodic Table PosterPeriodic Table PosterPeriodic Table Poster
Aluminum is incredible stuff. If it wasn't so common, its combination of desirable properties, great strength, lightness, corrosion resistance, and easy workability, would make it seem incredibly useful. People would say, man, if only we could get more aluminum, we could make all kinds of things out of it! In fact, that's exactly what happened: When it was first isolated the only process for getting it was extremely difficult, and as a result it was rare and expensive. Napoleon had dinnerware made out the amazing new precious metal. But people knew it was common in many rocks and minerals, and before too long a quick, cheap process using electricity was discovered for refining large quantities inexpensively.

Today aluminum refining is one the largest users of electricity in the world. So much electricity is required that aluminum refining is done not near where the aluminum ore is, but near where the power is (for example near large hydroelectric plants that can supply cheap power).

Although aluminum is still more expensive than iron/steel, it is often used in place of cast iron because it is much easier to cast, and because the resulting pieces are much easier to lift. Although you might say that cast aluminum benches, lamp posts, etc, are "imitation", it's hard to think of a single way in which they are not superior to the iron originals. They are stronger (weight-for-weight anyway), they don't rust, they are much easier to install and move, you can paint them and expect the paint to last, and so on.

Rockets and large airplanes would basically be impossible without aluminum: No other material that is inexpensive enough to even consider using is light and strong enough to make a large jetliner work. (Some day carbon fiber composites and the like may take over this role, but at this point they are still way too expensive.)
Compare at other websites:
periodictable.com
Wikipedia
WebElements
Museum Display
Minerals
Translations and Etymology
Science Fiction (Main Site)
Comics


Collections:
Fun/Dangerous Experiments
Minerals, Alloys, and Compounds
Elements Popular in Collections
Poster Samples
Elements I Have Extra Of
Elements at Walmart
Elements with External Samples
Samples with Rotatable Images
Samples with High Resolution Spin Movies
Aluminum 4/0 electrical wires
3D4/0 electrical wires.
This was from heavy-gauge electrical wire left over from when we added the round house at the farm. It's been melted down and allowed to cool in the standard graphite crucible used for many metal samples. It came out very ugly, so I used a grinder, table top belt sander, and wire brush in the drill press to machine it into a cleaner cylinder with a pleasing texture on the surface. I got the wire from a building center in the mid 1990s.
Aluminum wiring is used today only for large-diameter service entrance cable, because it's difficult and often dangerous when used for individual branch circuits, as it was for a time during the 1970's. This link provides more information about aluminum wiring.
Source: Hardware Store
Contributor: Theodore Gray
Acquired: 15 April, 2002
Text Updated: 11 August, 2007
Price: $1/foot
Size: 1.25"
Purity: >95%
Aluminum Water drop blobs
3D3DWater drop blobs.
This globular stuff is what happens if you pour molten aluminum into a deep bucket of water. You can pour any kind of molten metal into water and each kind will give you different shapes. The shapes depend on how high you pour from, how much above its melting point the metal is, and how deep the water is. According to certain traditions, the shapes also depend on your fate, hence can be used to predict it (most traditions specify lead, but I don't see any reason why aluminum would be less likely to work for this purpose).
Any time you combine water with molten metal, there is a danger of the metal splattering. Generally speaking, if you pour metal into a reasonably full bucket of water, it sinks and cools too fast for any to splatter back at you (which is not to say it can't happen, so use a face shield). But if you pour (or even drip) water into a container of molten metal, it's a different story: That is quite likely to cause a steam explosion that throws liquid metal all over. So when you're pouring metal into water, the biggest danger is if any water happens to splash back into the bowl you're pouring out of. Pour away from you, so the bowl is between you and the metal, don't lean over it while you're pouring, and wear thick clothes and sturdy shoes along with a face shield or at least glasses. (I should talk: I made these lumps barefoot in shorts and no shirt. It's OK because I'm a trained professional idiot. And no matter what other precautions I don't take, I would never do this without glasses on. I can risk missing a few square inches of skin, but not missing an eye.)

These were made from the same wire as the sample above.
Source: Hardware Store
Contributor: Theodore Gray
Acquired: 15 April, 2002
Price: $1/foot
Size: 1.25"
Purity: >95%

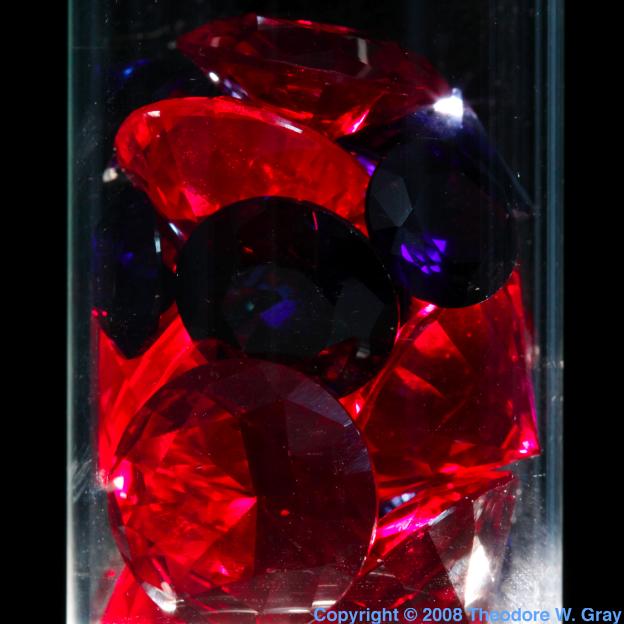

Aluminum Gem cut aluminum oxide corundum
3D3DGem cut aluminum oxide (corundum).
These are real rubies and sapphires purchased from http://www.pehnec.com in April 2002. Real because they are chemically and crystallographically indistinguishable from naturally occurring gems (that would cost well into 5 figures). Present in the table because they are man-made (real, but synthetic).
Source: Pehnec Gems
Contributor: Theodore Gray
Acquired: 23 April, 2002
Price: $15/both
Size: 0.6"
Purity: 53%
Aluminum Artificial knee joint practice version
3D3DArtificial knee joint (practice version).
After starting to collect elements I researched industrial uses of pure elements in search of products I might be able to get as samples. For titanium and tantalum a promising source seemed to be artificial body parts, since these are the only two elements used for that purpose, because they are unreactive with human body fluids. I joked to my long suffering colleagues that all I needed to do was find the right body to dig up. I think they were worried.

And of course not two days later I found an eBay listing for a human tibia with attached artificial knee joint. (There is nothing you can't buy on eBay, though I'm told it's actually a femur so be sure to double check any human remains auctions before bidding.) The dealer seemed to be a legitimate outfit in Berkeley, California, and they indicated they thought it was probably titanium. I secretly hoped it was tantalum, which would have made it worth a serious amount of money.

I won the auction for $31, which seems like a very fair price for half of someone's leg. (This would, by the way, set the price for an arm and a leg at approximately $120, a real bargain.) But doubt remained as to the true identity of the metal. According to the seller, this item had been made by the manufacturer of the artificial knee for use in training surgeons in the use of that company's special drills and tools. I hope they learned well, because it's got several cuts on it where it looks like someone slipped....

Since it was never meant to be implanted into a living person, I was worried they might have saved some money by using a cheaper alloy. I was right to worry. Through the good graces of Inga Karliner of the University of Illinois physics department I was put in contact with Ivan Petrov of the U of I's materials research department, which just happens to be a national collaborative center for materials testing, which means they have a hallway with something like two dozen very fancy instruments for telling me what my knee joint is made of.

Dr. Petrov's colleague Jim Mabon confirmed my fears with a quantitative analysis by x-ray fluorescence spectroscopy:
99.78% Aluminum
0.109% Iron
0.0062% Nickel
0.0053% Copper
0.0257% Zinc
In other words, common aluminum casting alloy. (Not only that, reader Don Keck tells me it's probably a femur, not a tibia, so the eBay description wasn't even right in that regard.) Interestingly, there was a 0.074% trace of titanium, which makes me think it was probably cast in the same mold, or maybe the aluminum was melted in the same crucible, as the titanium parts used on living people. There was not so much as the slightest detectable trace of tantalum. (Per the terms of their service, I should mention that this analysis was carried out in the Center for Microanalysis of Materials, University of Illinois, which is partially supported by the U.S. Department of Energy under grant DEFG02-91-ER45439.)

Oh well, by then I'd become attached to my little bone, and it will have a place of honor under aluminum. After all, this was someone's leg, maybe someone's daddy's leg, and it deserves respect. (It is claimed to be a pre-1987 leg from India.)
Source: The Bone Room
Contributor: Theodore Gray
Acquired: 13 May, 2002
Text Updated: 29 January, 2009
Price: $31
Size: 4"
Purity: 99.78%
Sample Group: Body Parts+Medical
Aluminum So-called Titanium racket
So-called "Titanium" racket.
"Racket" may be the right word for this sample, which used to be a racquetball racket prominently labeled as "TITANIUM". If it were titanium, it wouldn't have melted at about 700C in my crucible of truth.

It gets worse. It could have been one of many commonly used high-strength aluminum-titanium alloys, which contain a few percent of titanium: That would almost justify the use of the name "titanium" in the description. But analysis by x-ray fluorescence spectroscopy at the Center for Microanalysis of Materials, University of Illinois (partially supported by the U.S. Department of Energy under grant DEFG02-91-ER45439) indicates the following composition:

98.44% Aluminum
0.55% Manganese
0.53% Copper
0.24% Iron
0.16% Zinc

Where's the titanium you ask? It's not there, not even the tiniest trace.

Source: Chris Carlson
Contributor: Chris Carlson
Acquired: 10 June, 2002
Price: Donated
Size: 1.25"
Purity: >95%
Aluminum Fine powder,  99.999%
Fine powder, 99.999%.
Kindly donated by David Franco, who sent many elements after seeing the slashdot discussion, and this one after I sent him some Mathematica t-shirts.
Source: David Franco
Contributor: David Franco
Acquired: 11 June, 2002
Price: Donated
Size: 0.2"
Purity: 99.999%
Sample Group: Powders
Aluminum Tiny cylinder
Tiny cylinder.
Ed bought half a dozen different tiny metal cylinders from David Franco, intending to make some kind of puzzle out of them (Ed's a puzzle person). But they turned out to be too irregular, so he donated them to the table.
Source: David Franco
Contributor: Ed Pegg Jr
Acquired: 19 August, 2002
Text Updated: 11 August, 2007
Price: Donated
Size: 0.2"
Purity: 99.99%
Aluminum Japanese coin
3D3DJapanese coin.
I know I brought back a handful of these last time I was in Japan, but I can't find any of them. Fortunately Ed had some, and it's not like they're actually worth anything, which is why they are made of aluminum in the first place. Reader Lawrence Spiwak told me an interesting fact: A one yen coin is exactly two cm in diameter, and weighs exactly one gram. I've verified this to 5 decimal places with my analytic balance, so I know it's true.
Source: Japan
Contributor: Ed Pegg Jr
Acquired: 6 September, 2002
Text Updated: 9 April, 2009
Price: Donated
Size: 0.5"
Purity: >90%
Sample Group: Coins
Aluminum Sample from the RGB Set

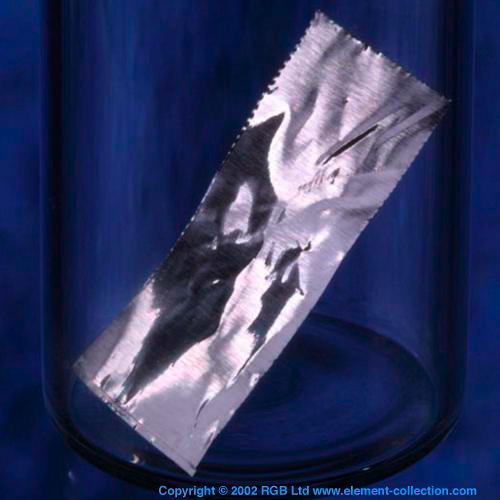

Sample from the RGB Set.
The Red Green and Blue company in England sells a very nice element collection in several versions. Max Whitby, the director of the company, very kindly donated a complete set to the periodic table table.

To learn more about the set you can visit my page about element collecting for a general description or the company's website which includes many photographs and pricing details. I have two photographs of each sample from the set: One taken by me and one from the company. You can see photographs of all the samples displayed in a periodic table format: my pictures or their pictures. Or you can see both side-by-side with bigger pictures in numerical order.

The picture on the left was taken by me. Here is the company's version (there is some variation between sets, so the pictures sometimes show different variations of the samples):


Source: Max Whitby of RGB
Contributor: Max Whitby of RGB
Acquired: 25 January, 2003
Text Updated: 11 August, 2007
Price: Donated
Size: 0.2"
Purity: 99.9%
Aluminum Sample from the Everest Set
Sample from the Everest Set.
Up until the early 1990's a company in Russia sold a periodic table collection with element samples. At some point their American distributor sold off the remaining stock to a man who is now selling them on eBay. The samples (except gases) weigh about 0.25 grams each, and the whole set comes in a very nice wooden box with a printed periodic table in the lid.

To learn more about the set you can visit my page about element collecting for a general description and information about how to buy one, or you can see photographs of all the samples from the set displayed on my website in a periodic table layout or with bigger pictures in numerical order.

Source: Rob Accurso
Contributor: Rob Accurso
Acquired: 7 February, 2003
Text Updated: 29 January, 2009
Price: Donated
Size: 0.2"
Purity: >99%
Aluminum Atomized aluminum
Atomized aluminum.
This is a very fine powder of aluminum. It can be used to make thermite (a mixture of iron oxide (rust) and aluminum), which burns very hotly and is used both for welding and for destroying things. It doesn't explode, it just create an extremely intense heat and the product of the reaction is white-hot molten iron.
A friend related the story of being in the signal corps of the army: Every piece of communications equipment that involved cryptographic components came as standard issue with a thermite blanket. In case if imminent enemy capture, the soldiers were instructed to put the thermite blanket over the machine and light it. The burning blanket would then reduce the machine to a puddle of molten slag. In dull moments they entertained themselves by having the blankets melt through the engine blocks of broken down jeeps.
Please note that finely powdered aluminum like this can be explosive under the right conditions. There was a disaster in my town in the summer of 2003, reported by the local newspaper as being an aluminum dust explosion: Here are three articles about it: 1, 2, 3.

Source: United Nuclear
Contributor: United Nuclear
Acquired: 11 April, 2003
Text Updated: 27 October, 2007
Price: $12/8 ounces
Size: 2"
Purity: >99%
Sample Group: Powders

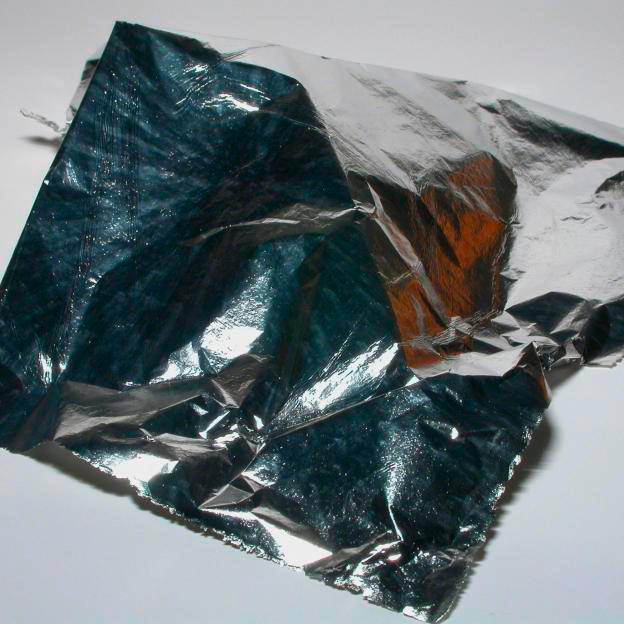

Aluminum Aluminum leaf
Aluminum leaf.
Gold leaf you've probably heard of, but it's possible to get very thin sheets of several different pure metals: Click the Sample Group link below to see all the ones I have, which represent pretty much the complete list of those that are commercially available. (Many, many different mixed alloys are also available in leaf form.). Leaf like this is so thin it has to be picked up with special Red Squirrel hair brushes (none of that Gray Squirrel crap, mind you) and when it wafts down onto an object it conforms to the shape of the surface, settling in even to details as fine as a fingerprint.
I bought this leaf from a store in New York when I was visiting there with my six-year-old daughter Addie: You can read about our visit here.
Source: New York Central Art Supply
Contributor: Theodore Gray
Acquired: 11 July, 2003
Price: $5/25 sheets
Size: 3.5"
Purity: >99%
Sample Group: Metal leaf
Aluminum 20 micron aluminum powder
20 micron aluminum powder.
This is a very fine powder of aluminum which I purchased 5 pounds of for doing thermite experiments in preparation for a Popular Science column article that may or may not ever happen.
Source: eBay seller henderko
Contributor: Theodore Gray
Acquired: 29 May, 2003
Price: $12/pound
Size: 5"
Purity: >99%
Sample Group: Powders
Aluminum Aluminum powder for paint
Aluminum powder for paint.
I had been having trouble finding aluminum powder in local paint stores, and was starting to wonder if its distribution had been restricted (because it is explosive under certain conditions, see story under previous aluminum powder samples). But it turns out you can still buy it in a well-stocked paint or artists' supply store, as I did with this bottle of very fine aluminum powder. It is intended to be mixed in with other paints or paint bases to make shiny metallic paint.
I bought this powder from a store in New York when I was visiting there with my six-year-old daughter Addie: You can read about our visit here.
Source: New York Central Art Supply
Contributor: Theodore Gray
Acquired: 11 July, 2003
Price: $3
Size: 3"
Purity: >99%
Sample Group: Powders
Aluminum Aluminum Penny
Aluminum Penny.
This is an incredibly rare coin: An experimental penny made to see if aluminum would be a good substitute for copper, when the price of copper rose to more than a penny per penny. Only a very small number were every minted, because they decided to go with copper-clad zinc instead. In fact, the coin is so rare that I couldn't possibly actually have one: This is a copy made by a company that specializes in making (legitimate) copies of extremely rare coins. Note that it's clearly stamped "COPY" so there is no confusion.
Source: eBay seller dlrguy
Contributor: Theodore Gray
Acquired: 11 July, 2003
Price: $10
Size: 1/2"
Purity: >99%
Sample Group: Coins
Aluminum Link in multi-metal chain
Link in multi-metal chain.
I had been wondering about how hard it would be to make a multi-part graphite mold with which I could cast chain links around each other. That is, given an existing link, cast a new one interlinked with it. This turns out to be quite do-able: Here is the mold I made (using my drill press as a vertical mill and a round-ended router bit):

In case you ever want to try this, I'll give you an important hint: The third link is the real test, not the second one.

Using this mold I have cast a chain out of all the metals I can easily cast. Click the Sample Group link below to see all the links together.

This chain (counted as one sample) is the 600th sample added to my collection.

Source: Hardware Store
Contributor: Theodore Gray
Acquired: 9 August, 2003
Text Updated: 20 February, 2006
Price: $1/pound
Size: 3"
Purity: >90%
Sample Group: Multi-metal Chain
Aluminum Hollow cathode lamp
Hollow cathode lamp.
Lamps like this are available for a very wide range of elements: Click the Sample Group link below to get a list of all the elements I have lamps like this for. They are used as light sources for atomic absorption spectrometers, which detect the presence of elements by seeing whether a sample absorbs the very specific wavelengths of light associated with the electronic transitions of the given element. The lamp uses an electric arc to stimulate the element it contains to emit its characteristic wavelengths of light: The same electronic transitions are responsible for emission and absorption, so the wavelengths are the same.
In theory, each different lamp should produce a different color of light characteristic of its element. Unfortunately, the lamps all use neon as a carrier gas: You generally have to have such a carrier gas present to maintain the electric arc. Neon emits a number of very strong orange-red lines that overwhelm the color of the specific element. In a spectrometer this is no problem because you just use a prism or diffraction grating to separate the light into a spectrum, then block out the neon lines. But it does mean that they all look pretty much the same color to the naked eye.
I've listed the price of all the lamps as $20, but that's really just a rough average: I paid varying amounts at various eBay auctions for these lamps, which list for a lot more from an instrument supplier.
(Truth in photography: These lamps all look alike. I have just duplicated a photo of one of them to use for all of them, because they really do look exactly the same regardless of what element is inside. The ones listed are all ones I actually have in the collection.)
Source: eBay seller heruur
Contributor: Theodore Gray
Acquired: 24 December, 2003
Price: $20
Size: 8"
Purity: 99.9%
Sample Group: Atomic Emission Lamps
Aluminum Aluminum-scandium master alloy
3DAluminum-scandium master alloy.
This irregular lump comes from Tim Worstall, the world's leading expert on the scandium trade by virtue of the fact that he is a good fraction of the world's scandium traders. Virtually no pure scandium metal is sold in the world, most of the scandium that trades hands is either scandium oxide, or master alloys like this. A master alloy is a precisely formulated mixture of metals that is meant to be added to a pot of more common metal to form the desired final alloy. This one is aluminum with about 2% scandium added. Why not just buy pure scandium and add it to a pot of aluminum? After all, that would save a lot of weight shipping around 98 pounds of aluminum for every two pounds of scandium. But creating alloys from pure metals is not always so easy. For one thing, the melting point of scandium is much, much higher than that of aluminum: You'd have to heat your aluminum much higher than otherwise necessary in order to get it to absorb the scandium. By purchasing scandium pre-dissolved in aluminum, the end user can simply dump the master alloy chunks into their pot of aluminum near its normal melting point.
Aluminum-scandium alloys are used for things like very expensive bicycle frames, baseball bats, and even a line of light-weight handguns. (Amazingly, two separate readers have written in to me about this last application, both commenting that the guns are very uncomfortable to shoot because the light weight results in a strong kickback.) Tim is excited by the possibilities for expanded use of these alloys, including in things like aircraft wings.
Source: Tim Worstall
Contributor: Tim Worstall
Acquired: 19 January, 2004
Price: Donated
Size: 1.25"
Purity: 98%

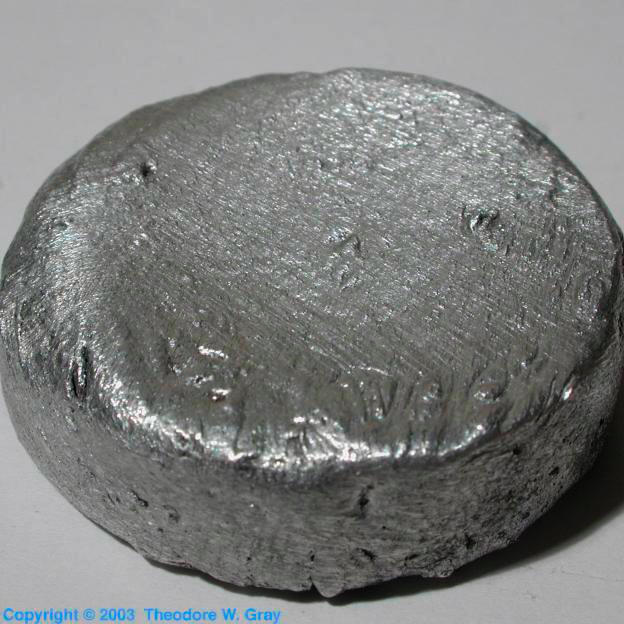

Aluminum Museum-grade sample

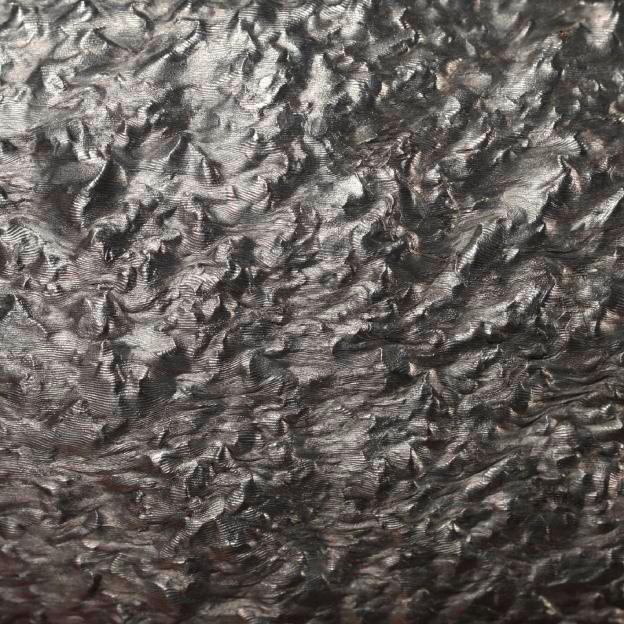

3DMuseum-grade sample.
In early 2004 Max Whitby and I started selling individual element samples identical or similar to the samples we use in the museum displays we build. These are top-quality samples presented in attractive forms appropriate to the particular element. They are for sale from Max's website and also on eBay where you will find an ever-changing selection of samples (click the link to see the current listings).
This ingot shows two kinds of surfaces, one where the metal cooled in contact with a graphite mold, and the top that was in contact with the air. The top surface is particularly interesting in that it shows the degree of contraction when the metal cools (which shows as a depression in the case of aluminum), and sometimes crystal structures that give the surface a wrinkled appearance as in copper or tin.
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 6 March, 2004
Text Updated: 11 August, 2007
Price: See Listing
Size: 4"
Purity: >99%
Sample Group: RGB Samples
Aluminum Museum-grade sample
3DMuseum-grade sample.
In early 2004 Max Whitby and I started selling individual element samples identical or similar to the samples we use in the museum displays we build. These are top-quality samples presented in attractive forms appropriate to the particular element. They are for sale from Max's website and also on eBay where you will find an ever-changing selection of samples (click the link to see the current listings).
This ingot is designed to show what the surface of the metal looks like when hammered: By comparing with similar hammered ingots of other metals an idea of the hardness and working characteristics of the metal is given. (We use approximately the same hammering force on each ingot, so lead will show much deeper hammer marks than zinc, for example.)
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 6 March, 2004
Text Updated: 11 August, 2007
Price: See Listing
Size: 4"
Purity: >99%
Sample Group: RGB Samples
Aluminum Museum-grade sample
3DMuseum-grade sample.
In early 2004 Max Whitby and I started selling individual element samples identical or similar to the samples we use in the museum displays we build. These are top-quality samples presented in attractive forms appropriate to the particular element. They are for sale from Max's website and also on eBay where you will find an ever-changing selection of samples (click the link to see the current listings).
This sample shows the appearance of the metal when dropped into a bucket of water. The metal is taken to just barely above its melting point, then poured in from close to the water surface, a potentially dangerous operation particularly in the case of aluminum (which can form hydrogen gas that may explode). If the temperature is too high the metal fragments into an almost powder form, so it is a delicate matter to get just the right conditions for the formation of smooth shapes like this.

I chose this sample to represent its element in my Photographic Periodic Table Poster. The sample photograph includes text exactly as it appears in the poster, which you are encouraged to buy a copy of.
Periodic Table Poster

Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 6 March, 2004
Text Updated: 11 August, 2007
Price: See Listing
Size: 1"
Purity: >99%
Sample Group: RGB Samples
Aluminum Museum-grade sample
3DMuseum-grade sample.
In early 2004 Max Whitby and I started selling individual element samples identical or similar to the samples we use in the museum displays we build. These are top-quality samples presented in attractive forms appropriate to the particular element. They are for sale from Max's website and also on eBay where you will find an ever-changing selection of samples (click the link to see the current listings).
This cast ball is designed to show what the surface of the metal looks like when hammered: By comparing with similar hammered balls of other metals an idea of the hardness and working characteristics of the metal is given. (We use approximately the same hammering force on each ball, so lead will show much deeper hammer marks than zinc, for example.)
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 1 May, 2004
Text Updated: 11 August, 2007
Price: See Listing
Size: 2"
Purity: >99%
Sample Group: RGB Samples
Aluminum Blobs

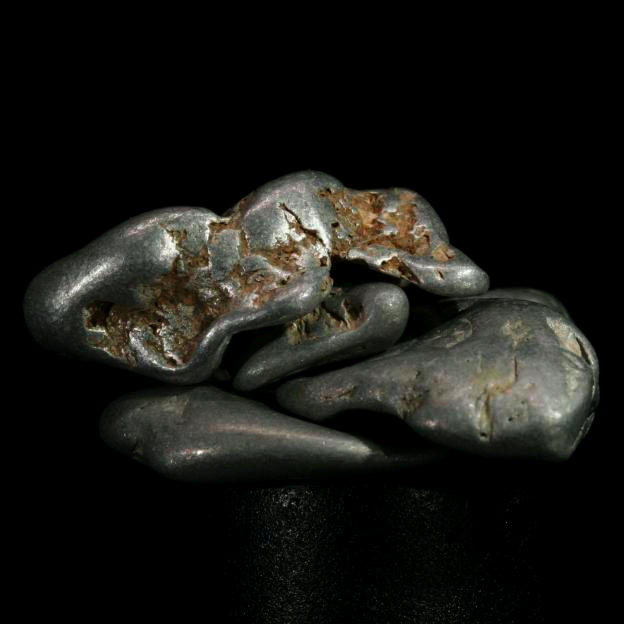

3DBlobs.
I made these blobs during a photo shoot for one of my Popular Science magazine articles to demonstrate the fact that pure aluminum has a very high surface tensions (resulting in rounded blobs, rather than the runny puddles you get with metals like tin).
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 15 July, 2004
Price: Donated
Size: 2"
Purity: >95%
Aluminum Mini element collection
Mini element collection.
This is a nice little set from the 1960's. The enclosed price list indicates it cost a few dollars, and the enclosed mercury sample indicates it predates current environmental concerns! Here's a picture of the whole 2-box set:
Jr Collection of Elements

Source: Blake Ferris
Contributor: Theodore Gray
Acquired: 15 July, 2004
Price: $61/set
Size: 1"
Purity: >98%
Aluminum Chain mail

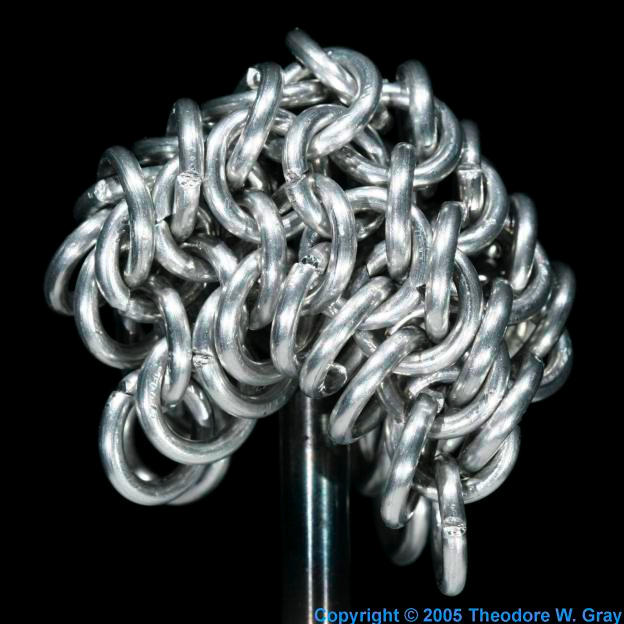

3D3DChain mail.
This is hand-made chain mail, meant to be used in jewelry, and made by Mike Lauter who kindly donated some to my collection, including versions made of four different elements (click the Sample Group link below to see the other variations). If you need some chain mail, he'd probably make some for you.
Source: Mike Lauter
Contributor: Mike Lauter
Acquired: 20 May, 2005
Price: Donated
Size: 2"
Purity: >98%
Sample Group: Chain Mail

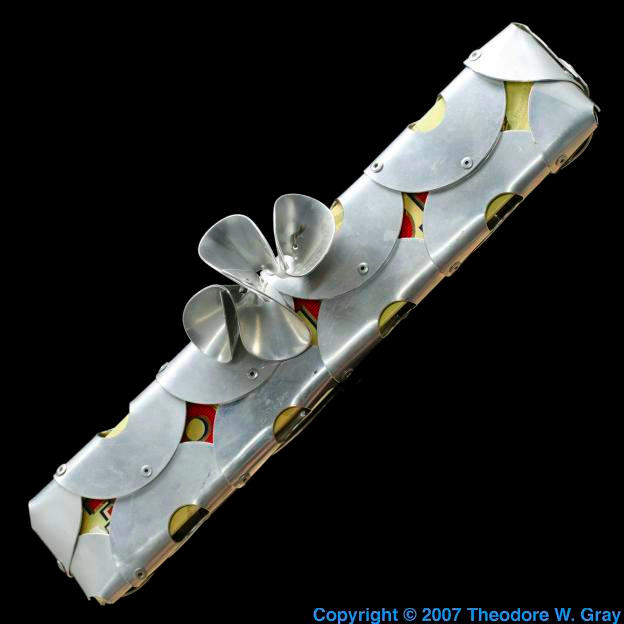

Aluminum Cigar case
3D3DCigar case.
The fact that this is a genuine Cuban cigar, rare and sought after because it's illegal to import in the US, does not concern us here. What matters is that the case is made of aluminum, a metal whose history parallels the future of Cuban cigars. At one time aluminum too was rare and sought after, so much so that royalty had tableware made of it rather than boring old silver. But then a process was invented to refine it easily, and almost overnight it became cheap and common. Similarly, as soon as a processes is invented to reconcile the insane standoff between the US and Cuba, Cuban cigars will become cheap and common, cashing in their cache until you can buy them at Target for 39 cents, Castro is a distant memory, and the only Cuban Missile Crisis is when one of their pitchers inevitably acquires that nickname.
Source: Ethan Currens
Contributor: Ethan Currens
Acquired: 25 April, 2006
Text Updated: 19 November, 2007
Price: Donated
Size: 7"
Purity: 95%
Aluminum Masterpiece

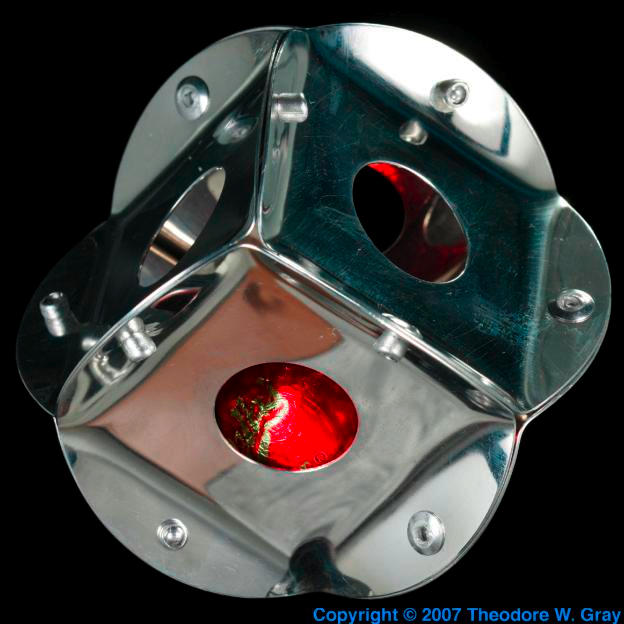

3D3DMasterpiece.
In the medieval guild system, an aspiring craftsman first became an apprentice, sweeping the floors and learning at the feat of the master. After some years he (almost always a he) graduated to the status of journeyman, entitled to earn wages and, on his own time, create a piece of his finest work, something good enough to prove to the elders of his guild that he was ready to assume the title of master of his craft. His masterpiece. If there had been a medieval guild of aluminum welders, and if Ethan had lived back then and were even old enough to be a journeyman, this would have been his masterpiece. Unfortunately aluminum had not been discovered and arc welding had not been invented, nor was Ethan born, before the disintegration of the guild system, so this is nothing more than a beautiful, beautiful demonstration of the art and craft of TIG welding. (TIG stands for Tungsten Inert Gas, meaning that a solid tungsten electrode conducts an electric arc to the work piece, heating the work and a stick of aluminum welding rod fed in at the same time.)
Welding aluminum is particularly difficult because aluminum conducts heat extremely well, so as you are trying to weld in one spot, the rest of it is getting hotter and hotter, and if you're not careful, whole sections of it will melt and fall away before you finish the weld. Careful control of the applied heat, and a good feel for the rate at which to move the electrode and feed the rod are necessary to get a good clean bead, such as you see on this cube. Seriously, it's not easy to do this.
Source: Ethan Currens
Contributor: Ethan Currens
Acquired: 1 July, 2006
Text Updated: 19 November, 2007
Price: Donated
Size: 4"
Purity: 95%
Aluminum Naturally occurring nodules
3D3DNaturally occurring nodules.
These nodules of native (naturally occurring) aluminum were found by alert reader Ann Lovgren on the shores of Lake Superior, the largest of the Great Lakes. Now wait a minute, there is no such thing as native aluminum, is there? In fact aluminum is famous for not occurring natively: Despite being the third most abundant element in the earth's crust, accounting for over 8% of the total weight of the crust, it was completely unknown as a metal until 1825 when small, precious samples were first isolated from ore.
But I claim these modules are just as naturally occurring as, say, the white cliffs of Dover. Both are the unintended side effects of life going about its business. The white limestone cliffs that line the English channel around the city of Dover are the remnants of microscopic algae that lived in the ancient seas for countless millions of years. These aluminum nodules are the remnants of aluminum cans, melted down in camp fires over countless dozens of years since the late 1960's when aluminum beverage cans became common.
Just as the cliffs took eons to build to their towering heights, so too will the fields of aluminum nodules slowly grow and spread, washing up on distant beaches millennia after they were formed by the slow but inexorable process of teenagers eliminating the evidence of their lake side beer binges.
Source: Ann Lovgren
Contributor: Ann Lovgren
Acquired: 10 July, 2006
Text Updated: 13 August, 2006
Price: Donated
Size: 1"
Purity: 95%
Aluminum Aluminum disk art
3D3DAluminum disk art.
Some time in the early 1990's, for reason that remain obscure to me, I purchased about 1200 pounds of aluminum hard disk platters from a local scrap metal dealer. They came from a local hard disk manufacturer (since gone out of business) and would have gone into 4" computer disk drives, had they not had some kind of flaw that relegated them to the scrap heap.
Years later, my colleague Chris Carlson started coming up with reasons why he'd like to have a stack of them, which of course I quickly agreed to since I still hadn't yet come up with any reasons for keeping them, let alone for buying them in the first place. (Still haven't, by the way.)
Then something quite unexpected happened: For several years in a row on my birthday I started getting these amazing, intricate geometrical constructions made out of, you guessed it, hard disk platters.
They are bent, cut, and riveted with great precision, and in later years started coming with chocolate imprisoned permanently inside. Of course Chris knows how much I love chocolate, which means he either thinks I'm a philistine who would destroy such fine works of art just to get to some chocolate, or he's teasing me. Of course I am a philistine, but even I have my limits, and besides the way these things are built, it's a lot less work to go out and get new chocolate.
They are listed as being acquired in 2006 only because that's when I finally realized that they are obviously good aluminum samples, as well as great works of hard disk art. They actually came into my possession in the late '90s and early '00s.
Source: Chris Carlson
Contributor: Chris Carlson
Acquired: 13 July, 2006
Text Updated: 15 July, 2006
Price: Donated
Size: 5"
Purity: 95%
Aluminum Aluminum disk art 2
3D3DAluminum disk art 2.
See above.
Source: Chris Carlson
Contributor: Chris Carlson
Acquired: 13 July, 2006
Text Updated: 14 July, 2006
Price: Donated
Size: 6"
Purity: 95%
Aluminum Aluminum disk art 3
3D3DAluminum disk art 3.
See above.
Source: Chris Carlson
Contributor: Chris Carlson
Acquired: 13 July, 2006
Text Updated: 14 July, 2006
Price: Donated
Size: 10"
Purity: 95%
Aluminum Element coin
3D3DElement coin.
Dave Hamric sells element samples under the name Metallium. He's developed a line of coins struck out of various common and uncommon metals: They are quite lovely, and very reasonably priced, considering the difficulty of creating some of them.
Here is the back side of this coin (click either picture to see it larger):

Click the Sample Group link below to see many other coins made of various elements, or click the link to his website above if you want to buy one like this.
Source: Dave Hamric
Contributor: Theodore Gray
Acquired: 1 December, 2006
Text Updated: 14 January, 2007
Price: $4
Size: 0.75"
Purity: >99%
Sample Group: Coins
Aluminum Medical Alum
3D3DMedical Alum.
This antique paper jar of alum was sold for medicinal purposes. Alum (potassium aluminum sulfate) is used in medicine for its drying properties and to stop bleeding.
Source: suesmccoy
Contributor: Theodore Gray
Acquired: 10 March, 2007
Text Updated: 11 March, 2007
Price: $10
Size: 2.5"
Purity: 7.4%
Sample Group: Medical
Aluminum Aluminum disk art 4
3D3DAluminum disk art 4.
See previous disk art samples.
Source: Chris Carlson
Contributor: Chris Carlson
Acquired: 13 July, 2006
Text Updated: 11 March, 2007
Price: Donated
Size: 14"
Purity: 95%
Aluminum Aluminum half cylinders
3D3DAluminum half cylinders.
The Boeing aircraft company operates a wonderful surplus store in Kent, Washington (near Seattle). I'd read about this place several times, but it was only because I was reminded by Troy McFarland literally days before traveling that I put two and two together: I'm flying to Seattle, and I could go to that surplus store.
It's got everything from old computers to old six ton machine tools, whatever all you might not need anymore for making airplanes. I bought several interesting shapes of aluminum, and some lovely tungsten carbide slot cutting bits from their toolroom section: Click the Source link below to see all the samples that come from this source.
Source: Boeing Surplus Store
Contributor: Theodore Gray
Acquired: 11 August, 2007
Text Updated: 11 August, 2007
Price: $10
Size: 6"
Purity: 95%
Aluminum Aluminum shape
3D3DAluminum shape.
I'm not sure what part of the airplane this is the complement of, but since it came from the Boeing surplus store, it must be a shape you're left over with after you cut out some important piece of airplane structure. Either that or someone was just having fun in the machine room.
Source: Boeing Surplus Store
Contributor: Theodore Gray
Acquired: 11 August, 2007
Text Updated: 11 August, 2007
Price: $15
Size: 12"
Purity: 95%
Aluminum Aluminum shape
3D3DAluminum shape.
It's hard to say what happened here. This thing came from the Boeing surplus store, which means it was meant to be something associated with something Boeing makes, but it didn't work out for some reason. See the next sample for an example where it's obvious why it didn't work out.
Source: Boeing Surplus Store
Contributor: Theodore Gray
Acquired: 11 August, 2007
Text Updated: 11 August, 2007
Price: $15
Size: 6"
Purity: 95%
Aluminum Aluminum oops shape
3D3DAluminum oops shape.
It's obvious why this chunk of aluminum ended up in the Boeing surplus store. See the bottom right corner? Someone was trying to machine out a nice rounded corner, and they set up the machine to turn the corner too soon: I'm guessing they failed to take into account the diameter of the cutting bit in calculating when the turn should start. The fact that they stopped the machine before it actually finished doing the wrong thing indicates it might have been a manually operated milling machine, which seems surprising considering how common CNC (Computer Numerically Controlled) machining is these days. A CNC machine would have gone ahead and really screwed up big time.
Source: Boeing Surplus Store
Contributor: Theodore Gray
Acquired: 11 August, 2007
Text Updated: 11 August, 2007
Price: $15
Size: 8"
Purity: 95%
Aluminum Copper plated aluminum coin
3D3DCopper plated aluminum coin.
I got this coin on a trip to Japan last year, and only now got around to photographing and describing it. Japanese one-yen coins are aluminum, but they are undisguised. This one, whose age and value I have no idea of, is copper plated aluminum, presumably an attempt to hide the shame of making your money from such a cheap metal. But the lightness gives it away.
Reader Ryan Rotmark sent the following helpful update:
I believe the date on the obverse says "Showa year 14", which is the 14th year of the reign of Emperor Showa, or 1939 on the Gregorian calendar. The reverse says "10 sen". A sen is 1/100 of a yen, so its value is 1/10 of a yen.

I decided to ask Nobuo Takahashi, the Japanese distributor of my Posters, about it, and he replied
The coin in question is called "aluminum bronze 10 sen coin" and
as your reader says it was minted in "showa 14" year.
The value of it in auction varies from 50 yen to 100 yen which
translates to 50 cents to a dollar.
http://homepage3.nifty.com/redpepper/round/10sen_arumiseidou.htm
According to this page, it is made of 95% copper and 5% of aluminum.
The coin used to be made of nickel but due to the lack of metal because of
war between Japan and China in 1938 they decide to make it with bronze.
Bronze usually made of copper and tin but even tin was scarce in that
time the aluminum was used.
So it seems like not copper plated but is alloy of copper and aluminum.
Nobuo
Hm, it really feels very, very light to me.
Source: Japan
Contributor: Theodore Gray
Acquired: 20 November, 2007
Text Updated: 29 January, 2009
Price: $1
Size: 0.5"
Purity: >90%
Sample Group: Coins
Aluminum Etched cast aluminum bar
3D3DEtched cast aluminum bar.
This bar was cast from very high purity aluminum pellets in a mold made by drilling a hole in a graphite slab, then etched with diluted potassium hydroxide. It was cooled slowly to allow crystals inside to grow large, as you can see from the size of the textured patches: Each patch represents a boundary of a single crystal.
Source: Juan Jimenez
Contributor: Juan Jimenez
Acquired: 2 December, 2007
Text Updated: 8 December, 2007
Price: Donated
Size: 2.5"
Purity: 99.9999%
Aluminum Rind of sputtering target
3D3DRind of sputtering target.
This is the first of several variations of this material I will be posting. Aluminum is widely used for sputtering, a process in which metal is vaporized off a target in a vacuum chamber and deposed in a thin layer on the surface of something else. For example the shiny layer in a CD or DVD disk is sputtered aluminum. To do this you need a sputtering target made of the material you want to deposit.
This very interesting piece of aluminum is scrap from the production of such a target. They started with a cylinder of very pure aluminum and, using tremendous pressure, squashed it down into a pancake about 2" thick and 18" in diameter. Then they sawed off (using a water jet) the outside rim of the pancake to leave a perfect disk. This piece is a slice of the rim that was cut off.
What's most remarkable about it is the strange bumpy ridged surface. I assumed at first it must be formed by some sort of electrodeposition process, as are many bumpy surfaces you'll see typically on raw high-purity metals. But in fact it is formed in a purely mechanical process as the disk is pressed down. There must be internal crystal structures that are sliding and a bumping into each other in way that creates this surface. I will be posting more variations of this material, including a full disk before the rind was cut off, which will show in more detail the strange ridges you see on closer examination.
Source: eBay seller mrj33
Contributor: Theodore Gray
Acquired: 8 December, 2007
Text Updated: 8 December, 2007
Price: $40
Size: 5"
Purity: 99.9996%
Aluminum Aluminum disk art 5
3D3DAluminum disk art 5.
See previous aluminum disk art samples.
Source: Chris Carlson
Contributor: Chris Carlson
Acquired: 18 November, 2007
Text Updated: 2 February, 2008
Price: Donated
Size: 3"
Purity: 95%
Aluminum Aluminum disk art 6
3D3DAluminum disk art 6.
See previous aluminum disk art samples.
Source: Chris Carlson
Contributor: Chris Carlson
Acquired: 18 November, 2007
Text Updated: 2 February, 2008
Price: Donated
Size: 3"
Purity: 95%
Aluminum Aluminum disk art 7
3D3DAluminum disk art 7.
See previous aluminum disk art samples.
Source: Chris Carlson
Contributor: Chris Carlson
Acquired: 18 November, 2007
Text Updated: 2 February, 2008
Price: Donated
Size: 3"
Purity: 95%
Aluminum Pressed sputtering target
3D3DPressed sputtering target.
Look back a few samples and you'll see a slice of the outer rim of a disk like this. After seeing how beautiful the surface of that slice was, I could not pass up the opportunity to have a full disk of the stuff. Normally these disks would have their irregular outer rim cut off (resulting in samples like he previous rind), but this one ended up slightly under-sized, making it a reject.

Along with the full disk came an explanation from the source of how the disks are made. Basically they start with a tall cylinder and squash it at low temperatures (-50C) and tremendous pressure (1600 tons). The surface texture is a result of large crystal grains in the material sliding against each other.

You can read all about the process in the the patent that covers it.

Source: eBay seller mrj33
Contributor: Theodore Gray
Acquired: 2 February, 2008
Text Updated: 23 February, 2008
Price: Anonymous
Size: 13"
Purity: 99.9996%
Aluminum Edge of sputtering target
3D3DEdge of sputtering target.
See previous sample for an explanation of what you're seeing here. This is the same object as pictured in the previous item description, but this time we're getting a close-up look at the texture of the outer edge. Click the spin video to get a complete tour all the way around the disk (this video has 900 frames compared to the normal 360 frames, as it is such a long way around).
Source: eBay seller mrj33
Contributor: Theodore Gray
Acquired: 2 February, 2008
Text Updated: 23 February, 2008
Price: Anonymous
Size: 13"
Purity: 99.9996%
Aluminum Cut ingot
3D3DCut ingot.
High purity single crystal ingot of aluminum that has had pieces cut off it.
Source: Ethan Currens
Contributor: Ethan Currens
Acquired: 26 September, 2008
Text Updated: 27 September, 2008
Price: Donated
Size: 1"
Purity: 99.99%
Aluminum Etched block
3D3DEtched block.
This is an interestingly etched block of high-purity aluminum, showing the crystal zones. I used it as the main feature in an article I wrote for my Popular Science column.
Source: Ethan Currens
Contributor: Ethan Currens
Acquired: 14 October, 2008
Text Updated: 14 October, 2008
Price: Donated
Size: 1"
Purity: 99.99%
Aluminum Ultrasonic test block
3D3DUltrasonic test block.
This block of aluminum is stamped "NO 7 ALCOA ULTRASONIC STD. REFERENCE BLOCK A1116". I'm going to hazard a guess that it's meant for testing ultrasonic inspection systems, which are used to examine critical pipes and welds to locate invisible cracks or voids in the material. It looks like a solid block, but possibly they have put some kind of defect inside it. Or maybe it's the reference for non-defective material.
Source: Ethan Currens
Contributor: Ethan Currens
Acquired: 27 December, 2008
Text Updated: 28 December, 2008
Price: Anonymous
Size: 2"
Purity: 99.9%
Aluminum Cannon
3D3DCannon.
This is a model cannon I made in shop class in highschool (Which is a bit odd since I went to a very academic type of high school. I'm unclear why they even had a shop class, let alone one with a lathe big enough to make this thing.) Anyway, I was very pleased with myself after finishing it, even though I could not get the hole all the way down to the bottom. Firing it would be a bad idea since I really have no way of knowing if it's strong enough to withstand any particular amount of powder.
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 29 January, 2009
Text Updated: 29 January, 2009
Price: Donated
Size: 18"
Purity: >95%
Aluminum Etched block
3D3DEtched block.
This is an interestingly etched block of high-purity aluminum, showing the crystal zones. It is a full bar of the material featured a few samples back in the form of a short slice.
Source: Ethan Currens
Contributor: Ethan Currens
Acquired: 8 February, 2009
Text Updated: 8 February, 2009
Price: Trade
Size: 8"
Purity: 99.99%
Aluminum Dinner-plate sized sputtering targets
3D3DDinner-plate sized sputtering targets.
These are simply huge aluminum sputtering targets, showing heavy use.
Source: Ethan Currens
Contributor: Ethan Currens
Acquired: 8 February, 2009
Text Updated: 9 April, 2009
Price: Trade
Size: 8"
Purity: 99.99%
Aluminum Turnings
3D3DTurnings.
These common aluminum lathe turnings are special only because I made them using a tungsten carbide lathe bit that I had made myself from tungsten carbide and cobalt powders. You can read how it's done in my Popular Science column.
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 8 February, 2009
Text Updated: 8 February, 2009
Price: Trade
Size: 2"
Purity: 99%
Aluminum Heat sink
3D3DHeat sink.
This is a lovely aluminum heat sink from a fiber optic signal amplifier you will find listed under erbium.
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 28 February, 2009
Text Updated: 1 March, 2009
Price: Donated
Size: 6"
Purity: 99%
Aluminum Mixed firefly aluminum
3D3DMixed firefly aluminum.
This firefly aluminum is a grade of mixed-size aluminum particles, flakes, and curls that is used in fireworks to give a long hang-time sparkle effect. The different sizes spread out the effect over a wider range of distances and times than any single size would allow.
Source: Skylighter
Contributor: Theodore Gray
Acquired: 28 February, 2009
Text Updated: 9 April, 2009
Price: $20
Size: 2"
Purity: 99%
Aluminum Aluminized survival blanket
3D3DAluminized survival blanket.
Blankets like this come packed into tiny plastic pouches and are designed to be used in emergency situations. They retain heat by reflecting it back from a shiny aluminum layer vapor deposited on a Mylar sheet.
Source: Walmart
Contributor: Theodore Gray
Acquired: 11 March, 2009
Text Updated: 17 March, 2009
Price: $5
Size: 4"
Purity: 99%
Aluminum Aluminum oxide grinding disk
3D3DAluminum oxide grinding disk.
Grinding wheel made of aluminum oxide bonded to a fabric mesh. Sort of like hardened sandpaper in the form of a disk meant to be used with a small angle grinder.
Source: Harbor Freight Tool Company
Contributor: Theodore Gray
Acquired: 11 March, 2009
Text Updated: 17 March, 2009
Price: $5
Size: 4"
Purity: <50%
Aluminum Pot
3D3DPot.
Standard-issue aluminum cooking pot
Source: Walmart
Contributor: Theodore Gray
Acquired: 24 March, 2009
Text Updated: 24 March, 2009
Price: $8
Size: 8"
Purity: 99%
Aluminum Chain mail art
3D3DChain mail art.
A lovely piece of three-dimensional chain mail art made from aluminum wire. From the source:
This is a sculpture called an "hourglass dodecahedron" (hourglass refers to the basic unit that the piece is built from) and nicely illustrates the sculptural capabilities of chain mail. The rings are 5356 alloy aluminum, which have been etched with sodium hydroxide to give them a frosted look. These make really nice Christmas ornaments, but are very labor intensive.

Source: Eric Winter
Contributor: Eric Winter
Acquired: 15 April, 2009
Text Updated: 23 April, 2009
Price: Donated
Size: 3"
Purity: 94%
Aluminum Rubber-aluminum chain mail
3D3DRubber-aluminum chain mail.
A small sample of chain mail made with alternating rubber and aluminum rings. From the source:
Rubber rings in chain mail are something fairly new. They have caught on quickly since they can be used for simple, cheap bracelets or cuffs without clasps, as well as form-fitting bikinis. The usual rubber rings are EPDM and come in many colors. The rings in this piece, however, are silicone rubber and contain doped strontium aluminate. The silicone rings are both less wear resistant and stretchy than the EPDM rings, but unlike EPDM, they are translucent so they glow properly. They are linked together with 5356 alloy aluminum rings in a modern weave called viperscale.

Source: Eric Winter
Contributor: Eric Winter
Acquired: 15 April, 2009
Text Updated: 17 April, 2009
Price: Donated
Size: 2"
Purity: 90%
Aluminum Dentopharma aluminum compound
3D3DDentopharma aluminum compound.
This is apparently some kind of material used to fill teeth, though I don't entirely understand how it's supposed to harden. Look at the rotation video to see the instructions on the back.
Source: eBay seller alpinevarietystore
Contributor: Theodore Gray
Acquired: 16 October, 2009
Text Updated: 18 October, 2009
Price: $4
Size: 0.5"
Purity: <50%
Aluminum Lepidolite from Jensan Set
3D3DLepidolite from Jensan Set.
This sample represents lithium in the "The Grand Tour of the Periodic Table" mineral collection from Jensan Scientifics. Visit my page about element collecting for a general description, or see photographs of all the samples from the set in a periodic table layout or with bigger pictures in numerical order.
Source: Jensan Scientifics
Contributor: Jensan Scientifics
Acquired: 17 March, 2003
Price: Donated
Size: 1"
Composition: K(Li,Al)3(Si,Al)4O10(F,OH)2
Aluminum Aquamarine Beryl from Jensan Set
3D3DAquamarine Beryl from Jensan Set.
This sample represents beryllium in the "The Grand Tour of the Periodic Table" mineral collection from Jensan Scientifics. Visit my page about element collecting for a general description, or see photographs of all the samples from the set in a periodic table layout or with bigger pictures in numerical order.
Source: Jensan Scientifics
Contributor: Jensan Scientifics
Acquired: 17 March, 2003
Price: Donated
Size: 1"
Composition: Be3Al2Si6O18
Aluminum Sodalite from Jensan Set
3D3DSodalite from Jensan Set.
This sample represents sodium in the "The Grand Tour of the Periodic Table" mineral collection from Jensan Scientifics. Visit my page about element collecting for a general description, or see photographs of all the samples from the set in a periodic table layout or with bigger pictures in numerical order.
Source: Jensan Scientifics
Contributor: Jensan Scientifics
Acquired: 17 March, 2003
Price: Donated
Size: 1"
Composition: Na4Al3Si3O12Cl
Aluminum Ruby  from Jensan Set
3D3DRuby from Jensan Set.
This sample represents aluminum in the "The Grand Tour of the Periodic Table" mineral collection from Jensan Scientifics. Visit my page about element collecting for a general description, or see photographs of all the samples from the set in a periodic table layout or with bigger pictures in numerical order.
Source: Jensan Scientifics
Contributor: Jensan Scientifics
Acquired: 17 March, 2003
Price: Donated
Size: 1"
Composition: Al2O3
Aluminum Bauxite from Jensan Set
3D3DBauxite from Jensan Set.
This sample represents gallium in the "The Grand Tour of the Periodic Table" mineral collection from Jensan Scientifics. Visit my page about element collecting for a general description, or see photographs of all the samples from the set in a periodic table layout or with bigger pictures in numerical order.
Source: Jensan Scientifics
Contributor: Jensan Scientifics
Acquired: 17 March, 2003
Price: Donated
Size: 1"
Composition: (Al,Fe,O,OH)+Ga
Aluminum Aquamarine Beryl
3DAquamarine Beryl. (External Sample)
The metal beryllium is named after this mineral. I used to say here that beryl was named after beryllium, but reader Jeffrey Shallit kindly pointed out the absurdity of that notion, since the mineral was known and named long before the metal. He writes:
The word beryl comes from ancient Greek and according to the OED, first appeared in English in 1305. But beryllium was not discovered until 1797 and the word "beryllium" did not appear in English until 1863.
Beryllium the metal is fairly plain looking and toxic, while beryl the mineral is quite beautiful and comes in a great variety of shapes and colors.
Location: John Gray's Collection
Photographed: 11 March, 2003
Size: 3"
Composition: Be3Al2Si6O18
Aluminum Aquamarine Beryl
3DAquamarine Beryl. (External Sample)
The metal beryllium is named after this mineral. It comes in a great variety of shapes and colors.
Location: John Gray's Collection
Photographed: 11 March, 2003
Size: 3"
Composition: Be3Al2Si6O18
Aluminum Ruby
3DRuby. (External Sample)
Ruby, the name given to the red form of corundum, is just simply aluminum oxide. It's very hard: Common sandpaper is made with aluminum oxide grit. Artificial rubies are dirt cheap because they are easy to make. Natural rubies are very expensive because they are hard to find.
This specimen is natural, but not clear "gem quality" ruby, which of course makes it much less expensive.
Location: John Gray's Collection
Photographed: 11 March, 2003
Size: 3"
Composition: Al2O3
Aluminum YAG boule top
3D3DYAG boule top.
YAG stands for yttrium-aluminum-garnet: It's used to make lasers and can be doped with various elements to create different colors. This green one, for example, is doped with chromium.
The conical shape is similar to that of my silicon boule top, presumably because they are made by similar crystal-growing procedures. A crystal begins growing from a seed, expands out until it reaches the diameter of the melting pot is being pulled from, and then continues to grow as a straight-sided cylinder as it is pulled slowly out. Only the full-diameter portion of the rod can be used, so the cone at the start becomes waste and ends up with someone like me. (Actually, even this waste is quite valuable, probably because it can be melted down and reused. But Max found a nice company willing to sell us the cutoffs for a reasonable price.)
Source: Max Whitby of RGB
Contributor: Max Whitby of RGB
Acquired: 10 October, 2003
Price: Donated
Size: 2"
Composition: (Cr,Y)Al2O3
Aluminum Sapphire boule
3DSapphire boule.
This is a "flame fusion" sapphire crystal boule, such as might be used to create synthetic cut gemstones. Flame fusion means a fine powder of aluminum oxide (the base material sapphires are made of) is blown through an extremely hot flame and onto a seed crystal. The molten droplets, somewhat amazingly, follow the pattern of the seed crystal and slowly accumulate into a large, single crystal of sapphire.
The slight pink cast in this boule comes from a 1% impurity of titanium. Impurities determine the colors of most gemstones, and are, for example, responsible for the difference between rubies and sapphires, both of which are made of aluminum oxide.
Source: SoCal (Nevada), Inc
Contributor: Theodore Gray
Acquired: 28 April, 2004
Price: $65
Size: 4"
Composition: Al2O3+Ti
Aluminum Aquamarine Beryl
3D3DAquamarine Beryl. (External Sample)
The metal beryllium is named after this mineral. It comes in a great variety of shapes and colors.
Location: John Gray's Collection
Photographed: 16 December, 2004
Size: 4"
Composition: Be3Al2Si6O18
Aluminum Tourmaline Dravite variant
3D3DTourmaline (Dravite variant).
I'm not sure why I have this mineral: I think it may have been a free sample included with some other mineral purchase. Lovely, though of relatively undistinguished chemical composition.
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 20 September, 2005
Price: Donated
Size: 1"
Composition: NaMg3Al6(BO3)3[Si6O18](OH)3(OH)
Aluminum Corundum aluminum oxide
3D3DCorundum (aluminum oxide).
Description from the source:
Corundum (Al2O3 trig.), India. Partially levigated to highlight the cat's-eye effect. Purple-bluish color, very nice. 4x3x2 cm; 57 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 26 September, 2008
Text Updated: 28 September, 2008
Price: Trade
Size: 1.6"
Composition: Al2O3
Aluminum Ruby Corundum
3D3DRuby Corundum.
Description from the source:
Corundum var. Ruby (Al2O3 trig.), Mysore, India. Perfect crystal on matrix. 3,2x2,5x2 cm (up to 14 mm the crystal); 20 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 26 September, 2008
Text Updated: 28 September, 2008
Price: Trade
Size: 0.5"
Composition: Al2O3
Aluminum Kyanite
3D3DKyanite.
Description from the source:
Kyanite (Al2SiO5 tric.), Itinga, Brazil. Rare complete crystals with transparence. 3,1x1,4x0,9 cm the bigger; 35 g all.
Source: Simone Citon
Contributor: John Gray
Acquired: 26 September, 2008
Text Updated: 28 September, 2008
Price: Trade
Size: 1.2"
Composition: Al2SiO5
Aluminum Corundum aluminum oxide
3D3DCorundum (aluminum oxide).
Description from the source:
Corundum (Al2 O3 trig.), India. Rough, complete, a bit deformed, as a horn. 4,5x2x1,8 cm; 34 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 26 September, 2008
Text Updated: 28 September, 2008
Price: Trade
Size: 1.75"
Composition: Al2O3
Aluminum Alunite
3D3DAlunite.
Description from the source:
Alunite (KAl3(SO4)2(OH)6 trig.), La Tolfa, Civitavecchia, Lazio, Italy. Small crystal clusters on the same massive material from a classic italian locale. 3,8x2,2x1,5; 22 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 26 September, 2008
Text Updated: 28 September, 2008
Price: Trade
Size: 1.5"
Composition: KAl3(SO4)2(OH)6
Aluminum Fluellite
3D3DFluellite.
Description from the source:
Fluellite (Al2(PO4)F2(OH).7H2O orth.), Tom's Quarry, Kapunda, South Australia, Australia. Rare crystals on the phosphatic matrix. 3x2,7x2 cm; 15 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 26 September, 2008
Text Updated: 28 September, 2008
Price: Trade
Size: 1.2"
Composition: Al2(PO4)F2(OH).7H2O
Aluminum Wavellite
3D3DWavellite.
Description from the source:
Wavellite (Al3 (PO4)2 (OH,F)3x5H2O orth.), Tom's Quarry, Kapunda, South Australia, Australia. Radiating colorless crystals on limonitic matrix, from a rich in phosphates locality. 1,9x1x0,8 cm; 3 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 September, 2008
Text Updated: 1 October, 2008
Price: Trade
Size: 0.75"
Composition: Al3(PO4)2(OH,F)3.5H2O
Aluminum Vesuvianite
3D3DVesuvianite.
Description from the source:
Vesuvianite (Ca10 Mg2 Al4 (SI O4)5 (Si2 O7)2 (OH)4 tet.), Bellecombe, Aosta, Italia. Perfect isolated crystal. 1,2x0,8x0,8 cm; 3 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 September, 2008
Text Updated: 1 October, 2008
Price: Trade
Size: 0.5"
Composition: Ca10Mg2Al4(SiO4)5(Si2O7)2(OH)4
Aluminum Staurolite
3D3DStaurolite.
Description from the source:
Staurolite ((Fe+2 Mg Zn)2 Al9 (Si Al)4 O22 (OH)2 mon.), Minas Gerais, Brazil. Single crystal. 1,8x1,5x1,2 cm; 5 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 September, 2008
Text Updated: 1 October, 2008
Price: Trade
Size: 0.7"
Composition: (FeMgZn)2Al9(SiAl)4O22(OH)2
Aluminum Wavellite
3D3DWavellite.
Description from the source:
Wavellite (Al3 (PO4)2 (OH,F)3x5H2O orth.), Maulding, Montgomery, Arkansas, USA. Nice spherical crystal clusters on matrix with green color, better than the photo. 7,2x4x3,5 cm; 63 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 September, 2008
Text Updated: 1 October, 2008
Price: Trade
Size: 2.8"
Composition: Al3(PO4)2(OH,F)3.5H2O
Aluminum Beryl
3D3DBeryl.
Description from the source:
Beryl ( Be3 Al2 Si6 O18 hex.), Governador Valadares, Minas Gerais, Brazil. Not terminated cristal on Quartz with decent color. 6x4,5x4 cm (crystal up to 22 mm); 126 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 September, 2008
Text Updated: 1 October, 2008
Price: Trade
Size: 2.4"
Composition: Be3Al2Si6O18
Aluminum Chrysoberyl
3D3DChrysoberyl.
Description from the source:
Chrysoberyl (Be Al2 O4 orth.), Colatinha, Espirito Santo, Brazil. Geminated, purple-greenish color. 2,2x2x1,2 cm; 10 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 September, 2008
Text Updated: 1 October, 2008
Price: Trade
Size: 1"
Composition: BeAl2O4
Aluminum Grossular
3D3DGrossular.
Description from the source:
Grossular (Ca3 Al2 (Si O4)3 cub.), Lake Jako, Sierra de las Cruces, Chihuahua, Mexico. Perfect rhombohedral crystal. 2,2x2x1,8 cm; 16 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 September, 2008
Text Updated: 1 October, 2008
Price: Trade
Size: 1"
Composition: Ca3Al2(SiO4)3
Aluminum Orthoclase
3D3DOrthoclase.
Description from the source:
Orthoclase (K Al Si3 O8 mon.), San Gotthard, Tessin, Switzerland. Geminated crystals of the variety Adular. 5x4x3 cm; 25 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 September, 2008
Text Updated: 1 October, 2008
Price: Trade
Size: 2"
Composition: KAlSi3O8
Aluminum Petalite
3D3DPetalite.
Description from the source:
Petalite (Li Al Si4 O10 mon.), Mogok, Myanmar (Burma). Isolated, fracturated beige crystal, rare. 2,5x1,6x1 cm; 5 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 September, 2008
Text Updated: 1 October, 2008
Price: Trade
Size: 1"
Composition: LiAlSi4O10
Aluminum Spinel
3D3DSpinel.
Description from the source:
Spinel (Mg Al O4 cub.), Parker Mine, Notre Dame du Laus, Quebec, Canada. Black crystals on matrix with Forsterite. 5x4x3,5 cm; 90 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 September, 2008
Text Updated: 1 October, 2008
Price: Trade
Size: 2"
Composition: MgAlO4
Aluminum Londonite-Rhodizite
3D3DLondonite-Rhodizite.
Description from the source:
Londonite-Rhodizite serie ( (Cs K Rb) Al4 Be4 (B Be)12 028 to Rb=0 for the pure Rhodizite cub.), Antandrokomby, Antsirabe`, Madagascar. Rich in rubidium example, with Tourmaline (probably Liddicoatite). 3,1x2,5x2 cm; 22 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 September, 2008
Text Updated: 1 October, 2008
Price: Trade
Size: 1.25"
Composition: (CsKRb)Al4Be4(BBe)12028
Aluminum Gehlenite
3D3DGehlenite.
Description from the source:
Gehlenite ( Ca2 Al (Al Si) O7 tet.), Le Selle, Monzoni, Trento, Italy. Small but evident. 1,5x1x1 cm; 3 g with box.
Source: Simone Citon
Contributor: John Gray
Acquired: 14 October, 2008
Text Updated: 14 October, 2008
Price: Trade
Size: 0.6"
Composition: Ca2Al(AlSi)O7
Aluminum Staurolite
3D3DStaurolite.
Description from the source:
Staurolite ((Fe+2 Mg Zn)2 Al9 (Si Al)4 O22 (OH)2 mon.), New Mexico, USA. Geminated with small garnets. 1,5x1,4x1,1 cm; 6 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 26 October, 2008
Text Updated: 26 October, 2008
Price: Trade
Size: 0.6"
Composition: (FeMgZn)2Al9(SiAl)4O22(OH)2
Aluminum Spessartite
3D3DSpessartite.
Description from the source:
Spessartite (Mn+23 Al2 (Si O4)3 cub.), Tongbei, Yunxiao, Fujian, China. Perfect crystals on matrix. 5x3,5x3 cm; 50 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 26 October, 2008
Text Updated: 26 October, 2008
Price: Trade
Size: 2"
Composition: Mn+23Al2(SiO4)3
Aluminum Pollucite from Jensan Set
3D3DPollucite from Jensan Set.
This sample represents cesium in the "The Grand Tour of the Periodic Table" mineral collection from Jensan Scientifics. Visit my page about element collecting for a general description, or see photographs of all the samples from the set in a periodic table layout or with bigger pictures in numerical order.
Source: Jensan Scientifics
Contributor: Theodore Gray
Acquired: 30 October, 2008
Text Updated: 31 October, 2008
Price: Anonymous
Size: 1"
Composition: (Cs,Na)2[Al2Si4O12].2H2O
Aluminum Elbaite
3D3DElbaite.
Description from the source:
Elbaite (Na (Li Al)3 Al6 (BO3)3 Si6 O18 (OH)4 trig.), Stak Nala, Haramosh, Skardu, Baltistan, Pakistan. Fascicular crystals on matrix. 4x2,5x1,5 cm; 12 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 October, 2008
Text Updated: 31 October, 2008
Price: Trade
Size: 1.5"
Composition: Na(LiAl)3Al6(BO3)3Si6O18(OH)4
Aluminum Manganaxinite
3D3DManganaxinite.
Description from the source:
Manganaxinite (Ca2 Mn+2 Al2 B Si4 O15 (OH) tric.), Dalnegorsk, Russia. Brown greenish, bladed crystal cluster. 2,5x2x1,5 cm; 8 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 30 October, 2008
Text Updated: 31 October, 2008
Price: Trade
Size: 1"
Composition: Ca2Mn+2Al2BSi4O15(OH)
Aluminum Photo Card Deck of the Elements
3D3DPhoto Card Deck of the Elements.
In late 2006 I published a photo periodic table and it's been selling well enough to encourage me to make new products. This one is a particularly neat one: A complete card deck of the elements with one big five-inch (12.7cm) square card for every element. If you like this site and all the pictures on it, you'll love this card deck. And of course if you're wondering what pays for all the pictures and the internet bandwidth to let you look at them, the answer is people buying my posters and cards decks. Hint hint.
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 19 November, 2008
Text Updated: 21 November, 2008
Price: $35
Size: 5"
Composition: HHeLiBeBCNOFNeNaMg AlSiPSClArKCaScTiVCrMn FeCoNiCuZnGaGeAsSeBrKr RbSrYZrNbMoTcRuRhPdAg CdInSnSbTeIXeCsBaLaCePr NdPmSmEuGdTbDyHoErTm YbLuHfTaWReOsIrPtAuHgTl PbBiPoAtRnFrRaAcThPaUNp PuAmCmBkCfEsFmMdNoLrRf DbSgBhHsMtDsRgUubUutUuq UupUuhUusUuo
Aluminum Lepidolite
3D3DLepidolite.
Description from the source:
Lepidolite (K (Li Al)3 (Si Al)4 O10 (F OH)2 mon.), Varutra"sk, Skellefteao, Va"sterbotten, Sweden. Laminar deep purple crystals on matrix. 5x3,5x3 cm; 45 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 19 November, 2008
Text Updated: 20 November, 2008
Price: Trade
Size: 2"
Composition: K(LiAl)3(SiAl)4O10(FOH)2
Aluminum Londonite-Rhodizite
3D3DLondonite-Rhodizite.
Description from the source:
Londonite-Rhodizite serie ( (Cs K Rb) Al4 Be4 (B Be)12 028 to Rb=0 for the pure Rhodizite cub.), Antandrokomby, Antsirabe`, Madagascar. Yellow, partially translucent crystals on matrix with tourmaline. I repeat these species also for other elements, but are very interesting and rich in rare elements. 3,5x2,5x1,5 cm; 12 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 19 November, 2008
Text Updated: 20 November, 2008
Price: Trade
Size: 1.4"
Composition: (CsKRb)Al4Be4(BBe)12
Aluminum Synthetic ruby boule
3D3DSynthetic ruby boule.
This is a lovely synthetic ruby boule cut in half. It's quite large, and said to be intended for use in making a ruby laser.
Source: eBay seller phumin2007
Contributor: Theodore Gray
Acquired: 1 December, 2008
Text Updated: 2 December, 2008
Price: $10
Size: 2.5"
Composition: Al2O3
Aluminum Beryl
3D3DBeryl.
Description from the source:
Beryl ( Be3 Al2 Si6 O18 hex.), Antsongombato, Antananarivo, Madagascar. Partial crystal with good blue-green color. 2,3x2,1x2 cm; 25 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 27 December, 2008
Text Updated: 28 December, 2008
Price: Trade
Size: 1"
Composition: Be3Al2Si6O18
Aluminum Stilbite
3D3DStilbite.
Description from the source:
Ca-Stilbite (Na Ca4 (Al9 Si27 O72)x nH2O mon.), Poona, Jalgaon, Maharashtra, India. White crystal cluster with pulverulent Laumontite. 3,5x1,3x1,3 cm; 5 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 27 December, 2008
Text Updated: 28 December, 2008
Price: Trade
Size: 1.4"
Composition: NaCa4(Al9Si27O72).H2O
Aluminum Pollucite
3D3DPollucite.
Description from the source:
Pollucite ((Cs Na)2 Al2 Si4 O12 x H2O cub.), Bennet Quarry, Maine, USA. Pink, massive. 4,5x2,5x1,5 cm; 20 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 27 December, 2008
Text Updated: 28 December, 2008
Price: Trade
Size: 1.75"
Composition: (CsNa)2Al2Si4O12.H2O
Aluminum Scolecite
3D3DScolecite.
Description from the source:
Scolecite (Ca Al2 Si3 O10 x 3 H2 O mon.), Poona, Jalgaon, India. White fascicular, delicate crystals. 5,5x2x1 cm; 3 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 27 December, 2008
Text Updated: 28 December, 2008
Price: Trade
Size: 2.2"
Composition: CaAl2Si3O10.3(H2O)
Aluminum Synthetic ruby boule
3D3DSynthetic ruby boule.
This is a lovely synthetic ruby boule cut in half. It's quite large, and said to be intended for use in making a ruby laser.
Source: eBay seller phumin2007
Contributor: Theodore Gray
Acquired: 27 December, 2008
Text Updated: 28 December, 2008
Price: $10
Size: 2.5"
Composition: Al2O3
Aluminum Synthetic ruby boule
3D3DSynthetic ruby boule.
This is a lovely synthetic ruby boule cut in half. It's quite large, and said to be intended for use in making a ruby laser.
Source: eBay seller phumin2007
Contributor: Theodore Gray
Acquired: 27 December, 2008
Text Updated: 28 December, 2008
Price: $10
Size: 2.5"
Composition: Al2O3
Aluminum Metal salesman's sample pouch
Metal salesman's sample pouch.
From the eBay item description, which pretty much sums up what this item is:
This auction is for a very unusual, what I think would be called a Salesman Sample, of 5 exotic metal disks. The brown plastic case that measures 2.50 in. by 6 in., was received by my Father when he visited the Kawecki Berylco Industries in the 1970's. The company was bought by Cabot Corp. in the late 70's. The disks measure 1.25 in. dia. by .1in. thick. According to the description in the case the 5 metals are Beryllium, Lockalloy, Beryllium Copper, Columbium [an older name for niobium], Tantalum.
The individual disks are listed under their respective elements (beryllium for lockalloy, copper for beryllium copper).
Source: eBay seller jacav111
Contributor: Theodore Gray
Acquired: 27 December, 2008
Text Updated: 28 December, 2008
Price: $134
Size: 6"
Composition: BeAlCuNbTa
Aluminum Allanite from Jensan Set
3D3DAllanite from Jensan Set.
This sample represents yttrium in the "The Grand Tour of the Periodic Table" mineral collection from Jensan Scientifics. Visit my page about element collecting for a general description, or see photographs of all the samples from the set in a periodic table layout or with bigger pictures in numerical order.
Source: Jensan Scientifics
Contributor: Theodore Gray
Acquired: 10 January, 2009
Text Updated: 10 January, 2009
Price: Anonymous
Size: 0.5"
Composition: (CaY)(Al2Fe)(O,OH,SiO4,Si2O7)
Aluminum Allanite-Y
3D3DAllanite-Y.
Description from the source:
Allanite-Y, Arendal, Nordge. Black, lustrous, massive. 3x1,5x1 cm; 10 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 10 January, 2009
Text Updated: 10 January, 2009
Price: Trade
Size: 1.2"
Composition: (CaY)(Al2Fe)(O,OH,SiO4,Si2O7)
Aluminum Allophane
3D3DAllophane.
Description from the source:
Allophane (amorphous hydrous aluminum silicate), Steyermark, Tyrol, Austria. An amorphous mineral on very delicate matrix. 3x1,8x1 cm; 3 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 10 January, 2009
Text Updated: 10 January, 2009
Price: Trade
Size: 1.2"
Composition: (Al2O3)(SiO2)1.3-2+2.5-3H2O
Aluminum Lepidolite
3D3DLepidolite.
Description from the source:
Lepidolite (K (Li Al)3 (Si Al)4 O10 (F OH)2 mon.), Aracuai`, Minas Gerais, Brazil. Little crystals on clear Quartz. 1,2x0,8x0,8 cm: 1 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 10 January, 2009
Text Updated: 10 January, 2009
Price: Trade
Size: 0.5"
Composition: K(Li,Al)3(Si,Al)4O10(F,OH)2
Aluminum Elbaite
3D3DElbaite.
Description from the source:
Elbaite (Na (Li Al)3 Al6 (BO3)3 Si6 O18 (OH)4 trig.), Minas Gerais, Brazil. Isolated, terminated crystal with rare pink-orange color. 2,3x0,8x0,8 cm; 4 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 28 January, 2009
Text Updated: 29 January, 2009
Price: Trade
Size: 1"
Composition: Na(LiAl)3Al6(BO3)3Si6O18(OH)4
Aluminum Gehlenite
3D3DGehlenite.
Description from the source:
Gehlenite ( Ca2 Al (Al Si) O7 tet.), Le Selle, Monzoni, Trento, Italy. Small but evident. 1,5x1x1 cm; 3 g with box.
Source: Simone Citon
Contributor: John Gray
Acquired: 28 January, 2009
Text Updated: 29 January, 2009
Price: Trade
Size: 0.6"
Composition: Ca2Al(AlSi)O7
Aluminum Londonite-Rhodizite
3D3DLondonite-Rhodizite.
Description from the source:
Londonite-Rhodizite serie ( (Cs K Rb) Al4 Be4 (B Be)12 028 to Rb=0 for the pure Rhodizite cub.), Antandrokomby, Antsirabe`, Madagascar. Perfect isolated crystals. 1x0,8x0,7 cm the bigger; 2 g all.
Source: Simone Citon
Contributor: John Gray
Acquired: 28 January, 2009
Text Updated: 29 January, 2009
Price: Trade
Size: 0.4"
Composition: (CsKRb)Al4Be4(BBe)12028
Aluminum Topaz
3D3DTopaz.
Description from the source:
Topaz (Al2 Si O4 (F OH)2 orth.), Perfect, transparent crystals with a bit of matrix. 2,6x2,1x1,5 cm; 10 g with box.
Source: Simone Citon
Contributor: John Gray
Acquired: 28 January, 2009
Text Updated: 29 January, 2009
Price: Trade
Size: 1"
Composition: Al2SiO4(FOH)2
Aluminum Rock of alum
3D3DRock of alum.
This is a hunk of potassium alum, used for many things but sold retail in this form primarily as a deodorant.
Source: eBay seller saratthasamuccaya
Contributor: Theodore Gray
Acquired: 8 February, 2009
Text Updated: 8 February, 2009
Price: $6/pound
Size: 3"
Composition: KAl(SO4)2.12H2O
Aluminum Compact flash card hard drive
3D3DCompact flash card hard drive.
This is just crazy. When I first heard about these things my jaw literally dropped (not literally). They are obsolete now, having been hopelessly beaten by solid state flash memory, but in their day they were the highest capacity compact memory cards available, up to 8GB by 2008 (by which time 64GB flash memory cards were available).
And they are mechanical hard disk drives. Let me remind you of the dimensions of a compact flash card (type II): 1.4" x 1.7" x 0.2" (36.4mm x 42.8mm x 5mm). The platter in this drive is about 1" (2.5cm) in diameter. It's just crazy small. There's an electric motor spinning the platter, an electro-magnet that moves the read-write heads back and forth, the whole works, plus of course all the control and interface electronics, packing into no space.
I stand in awe of this device.
The platters are aluminum, the electronics are silicon, the wiring is copper, the magnets are neodymium iron boron, and the magnetic coating is iron and cobalt based.
Source: Electronics Store
Contributor: Theodore Gray
Acquired: 28 February, 2009
Text Updated: 1 March, 2009
Price: $100
Size: 1.75"
Composition: AlSiCuCoFeNdB
Aluminum Strontium aluminum master alloy rod
3D3DStrontium aluminum master alloy rod.
Master alloys are used to add small amounts of alloying agents to a pot of melted metal. They contain a much larger concentration of the agent pre-mixed with the base metal you want to amend. In this case it's somewhere between 10% and 30% strontium mixed into aluminum (the seller wasn't sure what grade of strontium aluminum the rods are).
Source: eBay seller consiliumdesigns
Contributor: Theodore Gray
Acquired: 28 February, 2009
Text Updated: 1 March, 2009
Price: $5
Size: 12"
Composition: SrAl
Aluminum Cooking alum
3D3DCooking alum.
Powdered alum meant for use in cooking.
Source: Walmart
Contributor: Nick Mann
Acquired: 11 March, 2009
Text Updated: 12 March, 2009
Price: $1
Size: 2"
Composition: KAl(SO4)2.12H2O
Aluminum Density Set
3D3DDensity Set.
A cute little set of six cubes made from different metals, used to show students how different their densities can be. For cost reasons these sets rarely contain any really dense elements, such as tungsten, which is a pitty since students thus come away with the idea that lead is the densest metal, which is far from the truth. Osmium is twice as dense, and tungsten a good 75% more dense.
Source: Educational Innovations
Contributor: Theodore Gray
Acquired: 11 March, 2009
Text Updated: 12 March, 2009
Price: $20
Size: 1"
Composition: PbCuFeZnAlZn
Aluminum Painite
3D3DPainite.
Sample of painite (Ca Zr B Al9 O18 hex.), Mogok, Myanmar (Burma). Extremely rare crystals. 0,6x0,3x0,2 cm the bigger; 1 g all;.
Source: Simone Citon
Contributor: John Gray
Acquired: 24 March, 2009
Text Updated: 25 March, 2009
Price: Trade
Size: 0.25"
Composition: CaZrBAl9O18
Aluminum Turquoise
3D3DTurquoise.
Sample of turquoise.
Source: Jensan Scientifics
Contributor: Theodore Gray
Acquired: 24 March, 2009
Text Updated: 25 March, 2009
Price: Anonymous
Size: 2"
Composition: Cu(Al,Fe)6[(OH)4(PO4)2]2.4H2O
Aluminum Kuliokite
3D3DKuliokite.
Kuliokite rich in lutetium, thulium, and holmium.
Source: Jensan Scientifics
Contributor: Theodore Gray
Acquired: 25 April, 2009
Text Updated: 27 April, 2009
Price: Anonymous
Size: 0.1"
Composition: (YLuTmHo)4Al(SiO4)2(OH)2F5
Aluminum Kunzite
3D3DKunzite.
Kunzite.
Source: Jensan Scientifics
Contributor: Theodore Gray
Acquired: 25 April, 2009
Text Updated: 27 April, 2009
Price: Anonymous
Size: 0.5"
Composition: LiAl[Si2O6]
Aluminum Mica sheet
3D3DMica sheet.
This is a sheet of mica, a papery thin mineral that was often used as an electrical insulator. The term mica refers to a range of specific minerals and I don't know which one this is exactly, so the composition is just a guess.
Source: Mark Peterson
Contributor: Mark Peterson
Acquired: 13 January, 2010
Text Updated: 13 January, 2010
Price: Donated
Size: 3"
Composition: (KLi2Al(Al,Si)3O10(F,OH)2
Aluminum Birthday present for Oliver Sacks
Birthday present for Oliver Sacks. (External Sample)
I went to New York with my six-year-old daughter Addie on somewhat of a whim, to attend Oliver Sacks' 70th birthday party. We had a great time: You can read all about it.
Of course I had to bring an element present, since Sacks is an element collector like myself (he came to visit my table about a year earlier). 70 (ytterbium) is kind of a boring element, so I decided to bring him some elements that add up to 70, aluminum (13), copper (29) and nickel (28), in the form of this little candy dish.
Location: Oliver Sacks' Office
Photographed: 9 July, 2003
Size: 8"
Purity: 33%
Aluminum Very complex mirror
3D3DVery complex mirror. (External Sample)
Donald Barnhart used his Optica software, built using Mathematica, to design this beautiful custom-shaped mirror. It focuses the light emitted from a stream of droplets as they are hit by a laser beam in a cell sorting machine. (Yes, there are machines that sort individual cells, one at a time. The ones Donald works on are made by iCyt.)
Amazingly, the perfect mirrored surface was not polished to that mirror finish. It was cut with a high-speed diamond lathe of such astonishing perfection that the finish you see is how it came out of the lathe. If that doesn't move you nearly to tears, you have no appreciation for fine machining.
The blue color, incidentally, is from blue fabric suspended over the sample, not from any inherent color in the mirror.
Location: Donald Barnhart
Photographed: 30 October, 2008
Text Updated: 15 November, 2008
Size: 3"
Purity: 99%
Periodic Table Poster   My periodic table poster is now available!Periodic Table PosterPeriodic Table PosterPeriodic Table Poster
