Palladium Small rectangle of 0.01mm foil, 99.999%Palladium Spark plugPalladium Sample from the RGB SetPalladium Sample from the Everest SetPalladium Catalytic ConverterPalladium Palladium leafPalladium Palladium roundPalladium Blood sugar test stripsPalladium RingPalladium Poster samplePalladium Element coinPalladium Coin or stamp?Palladium Coin or stamp?Palladium Antique spongePalladium Catalytic converter honeycombPalladium Photo Card Deck of the ElementsPalladium Native palladium from Jensan setPalladium PalladobismutharsenidePalladium
Periodic Table Poster   My periodic table poster is now available!Periodic Table PosterPeriodic Table PosterPeriodic Table Poster
Palladium currently costs about the same as gold, but during the late 1990s it briefly tripled in price because of the Ford Motor Companies stockpiling of huge quantities of it for use in their catalytic converters. It turned out that improvements in technology reduced the need, and Ford ended up selling their stockpile at a loss. A loss of a billion dollars or so. (See below for an example of what you can do with a catalytic converter.)

While not common, palladium coins have been minted by a number of countries, notably Russia: They are quite beautiful.
Compare at other websites:
periodictable.com
Wikipedia
WebElements
Museum Display
Minerals
Translations and Etymology
Science Fiction (Main Site)
Comics


Collections:
Minerals, Alloys, and Compounds
Elements Popular in Collections
Poster Samples
Elements with External Samples
Samples with Rotatable Images
Samples with High Resolution Spin Movies

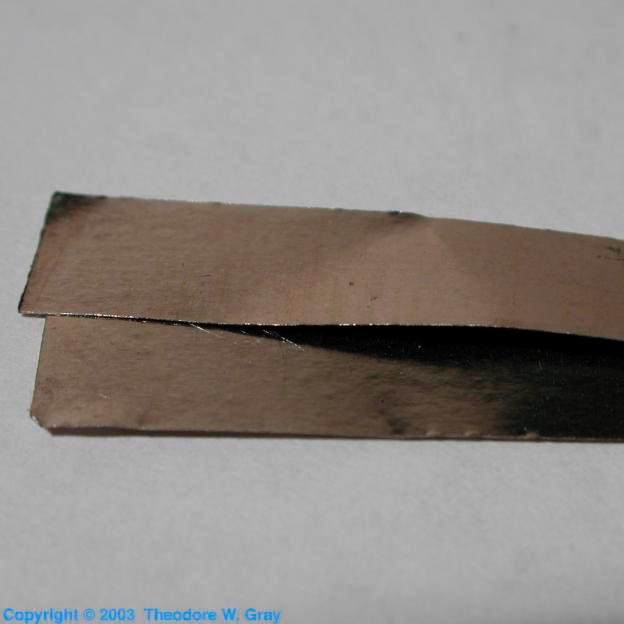

Palladium Small rectangle of 0.01mm foil, 99.999%
Small rectangle of 0.01mm foil, 99.999%
We didn't expect anyone to send us free gold and platinum, but this is pretty close! This small sample was kindly donated by George (not 007) Lazenby, who saw the slashdot discussion. It came in a lovely little plastic vial.
George got this and the other samples he donated at a surplus auction of his high school. It seems he was the only one there who appreciated the erbium foil. This sample and the others he sent had been donated to the school by a former student who worked at NIST (National Institute for Standards and Testing), where they had been used as x-ray calibration standards. This means they are probably very pure.
Source: George (not 007) Lazenby
Contributor: George (not 007) Lazenby
Acquired: 24 May, 2002
Price: Donated
Size: 1"
Purity: 99.999%
Palladium Spark plug
Spark plug.
These spark plugs, now discontinued, were made with a gold-palladium alloy center electrode. Some people swear by them, other people swear at them. In any case, the company (Champion) replaced them with a platinum version.
Here's an interesting article about different elements in spark plugs.
Source: eBay seller drsusphd
Contributor: Theodore Gray
Acquired: 10 January, 2003
Text Updated: 11 August, 2007
Price: $8/4
Size: 3"
Purity: <50%
Sample Group: Spark Plugs

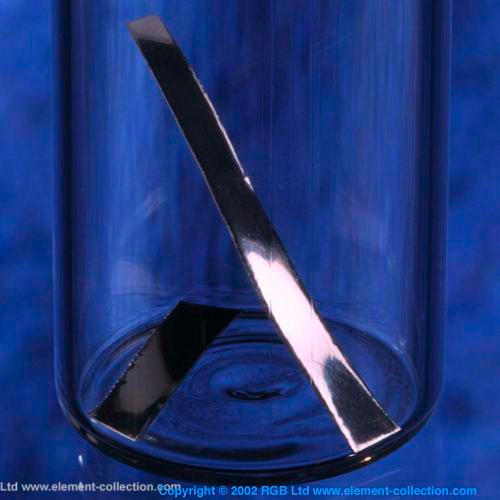

Palladium Sample from the RGB Set
3D3DSample from the RGB Set.
The Red Green and Blue company in England sells a very nice element collection in several versions. Max Whitby, the director of the company, very kindly donated a complete set to the periodic table table.

To learn more about the set you can visit my page about element collecting for a general description or the company's website which includes many photographs and pricing details. I have two photographs of each sample from the set: One taken by me and one from the company. You can see photographs of all the samples displayed in a periodic table format: my pictures or their pictures. Or you can see both side-by-side with bigger pictures in numerical order.

The picture on the left was taken by me. Here is the company's version (there is some variation between sets, so the pictures sometimes show different variations of the samples):


Source: Max Whitby of RGB
Contributor: Max Whitby of RGB
Acquired: 25 January, 2003
Text Updated: 11 August, 2007
Price: Donated
Size: 0.2"
Purity: 99.9%

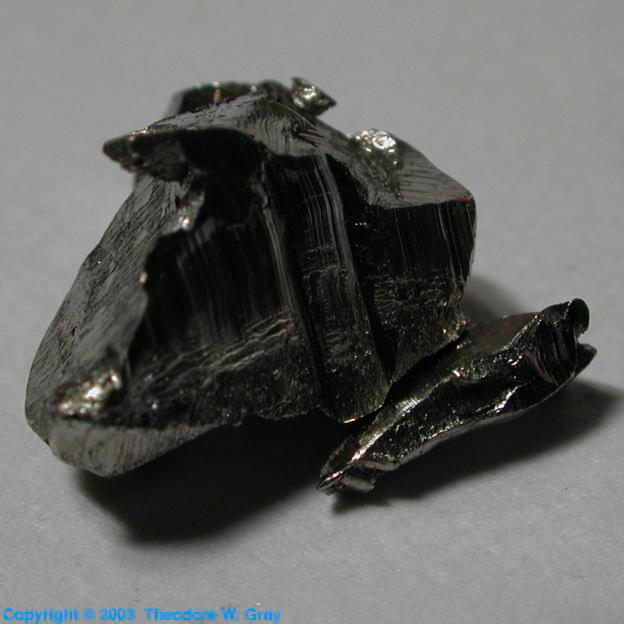

Palladium Sample from the Everest Set
Sample from the Everest Set.
Up until the early 1990's a company in Russia sold a periodic table collection with element samples. At some point their American distributor sold off the remaining stock to a man who is now selling them on eBay. The samples (except gases) weigh about 0.25 grams each, and the whole set comes in a very nice wooden box with a printed periodic table in the lid.

To learn more about the set you can visit my page about element collecting for a general description and information about how to buy one, or you can see photographs of all the samples from the set displayed on my website in a periodic table layout or with bigger pictures in numerical order.

Source: Rob Accurso
Contributor: Rob Accurso
Acquired: 7 February, 2003
Text Updated: 29 January, 2009
Price: Donated
Size: 0.2"
Purity: >99%
Palladium Catalytic Converter
Catalytic Converter.
Catalytic converters clean up car exhaust by burning any fuel that didn't get burned up properly in the engine. It's better to emit a little more carbon dioxide and water than to emit unburned or partially burned hydrocarbons, which turn into smog. The converters work by using the unique ability of certain precious metals, notably platinum, palladium, and rhodium, to catalyze the burning of hydrocarbons at temperatures below their normal ignition point.
The exhaust gas is passed through a ceramic honeycomb coated with fine particles of one or the other of the metals, cleaning it up and in the process heating the converter up to a fairly high temperature (which has the useful side effect of making it work better).

To be honest, I have no idea if this particular catalytic converter actually uses palladium rather than one of the other possible metals. I have it under palladium just because of the story about Ford's ill-fated attempt to stockpile palladium for use in their catalytic converters.

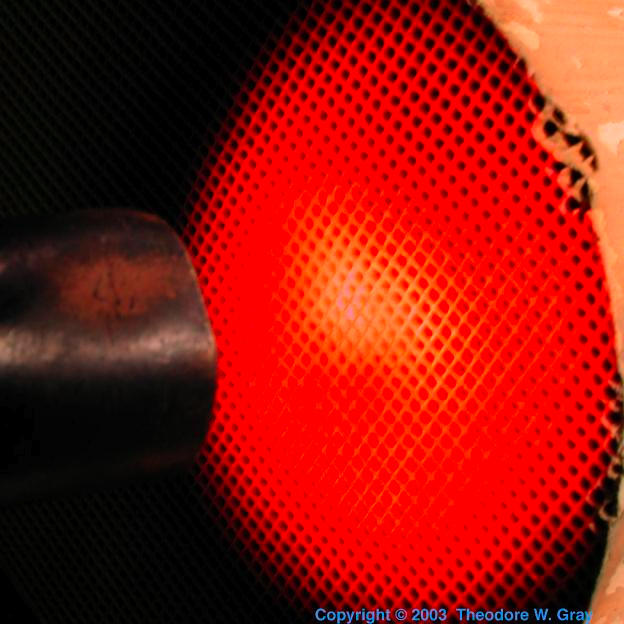

I decided to see if I could use this converter to catalytically burn propane from a propane torch. It worked. I started by pointing a lit plumbing torch at the ceramic unit from a new catalytic converter. After it was glowing red hot next to the flame, I turned the gas off long enough for the flame to go out, then quickly turned it back on. Sure enough the ceramic quickly turned red hot again, and depending on how I positioned the unlit torch, the glowing area grew and moved around. It was quite obviously burning the propane, even though there was absolutely no open flame. The fact that there was no smell of propane also confirmed that it was being consumed quite effectively.

To be perfectly clear: In the picture for this sample, the torch is not lit: It is simply sending out a stream of cold propane gas. The ceramic element is consuming the fuel catalytically. There's probably something really useful you could do with this effect.

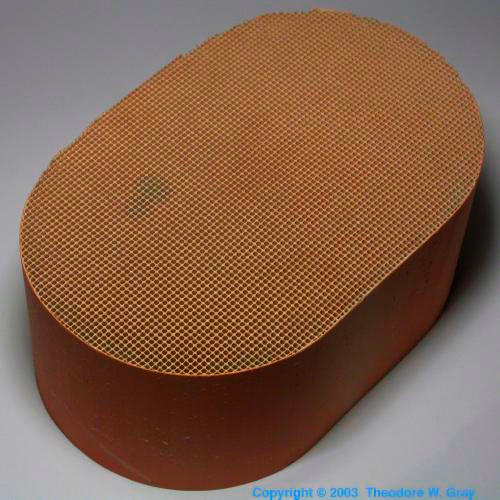

Here's what the whole cartridge looks like. The converter contains two of these:


Source: Farm & Fleet
Contributor: Theodore Gray
Acquired: 26 April, 2003
Text Updated: 29 January, 2009
Price: $75
Size: 6"
Purity: 1%

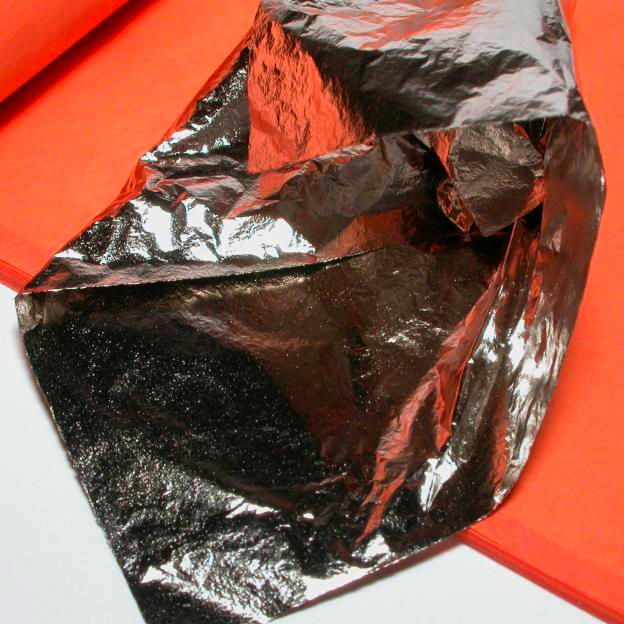

Palladium Palladium leaf
Palladium leaf.
Gold leaf you've probably heard of, but it's possible to get very thin sheets of several different pure metals: Click the Sample Group link below to see all the ones I have, which represent pretty much the complete list of those that are commercially available. (Many, many different mixed alloys are also available in leaf form.).

Palladium leaf may seem exotic at first, but it's actually quite commonly used as an alternative to silver, because it looks similar but does not tarnish. For outdoor applications, for example, you cannot use silver leaf. This may be one of the few instances where a truly precious metal (comparable in price to gold) is used to imitate a far less valuable one (silver is usually about 1/70th the price of gold or palladium).

Leaf like this is so thin it has to be picked up with special Red Squirrel hair brushes (none of that Gray Squirrel crap, mind you) and when it wafts down onto an object it conforms to the shape of the surface, settling in even to details as fine as a fingerprint.

I bought this leaf from a store in New York when I was visiting there with my six-year-old daughter Addie: You can read about our visit here.
Source: New York Central Art Supply
Contributor: Theodore Gray
Acquired: 11 July, 2003
Price: $48/25 sheets
Size: 3.5"
Purity: >99%
Sample Group: Metal leaf

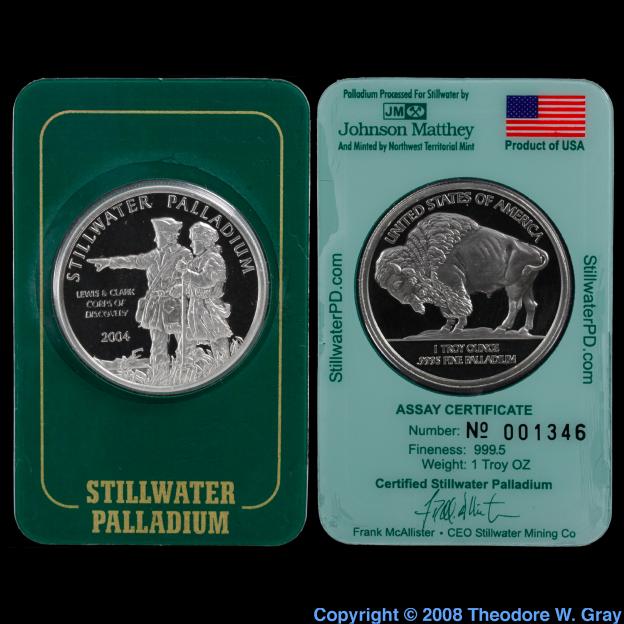

Palladium Palladium round
Palladium round.
This coin (technically a "round" not a "coin" since it is not legal tender) was very kindly donated by Dan York, a fan of this website. I've been wanting a palladium coin for a long time, but the price has remained stubbornly high. Fortunately Dan came to my rescue with this very generous contribution.
Source: Northwest Territorial Mint
Contributor: Dan York
Acquired: 1 August, 2004
Price: Donated
Size: 1.5"
Purity: 99.95%
Sample Group: Coins

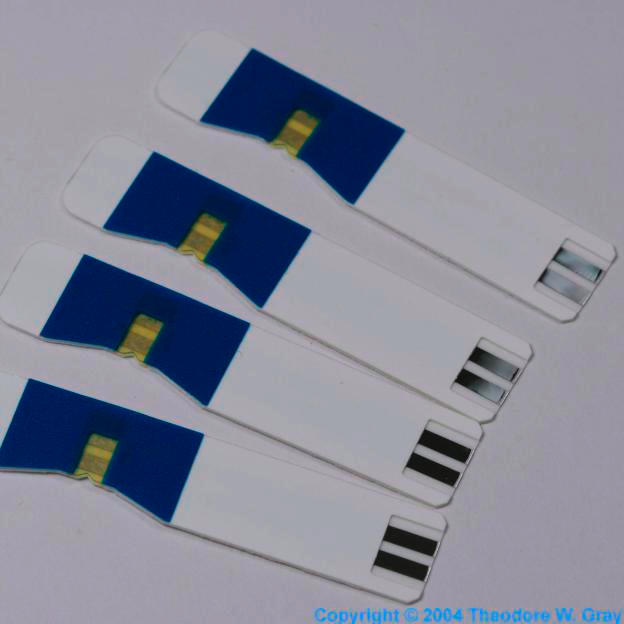

Palladium Blood sugar test strips
Blood sugar test strips.
The package says these contain palladium "for improved accuracy". I am waiting for a call back from their customer service department to explain just exactly where the palladium is, and why. They are strips meant to be used with a blood glucose test meter.
Source: Justin Urgitis
Contributor: Justin Urgitis
Acquired: 1 August, 2004
Text Updated: 11 March, 2007
Price: Donated
Size: 1.5"
Purity: Unknown
Sample Group: Medical

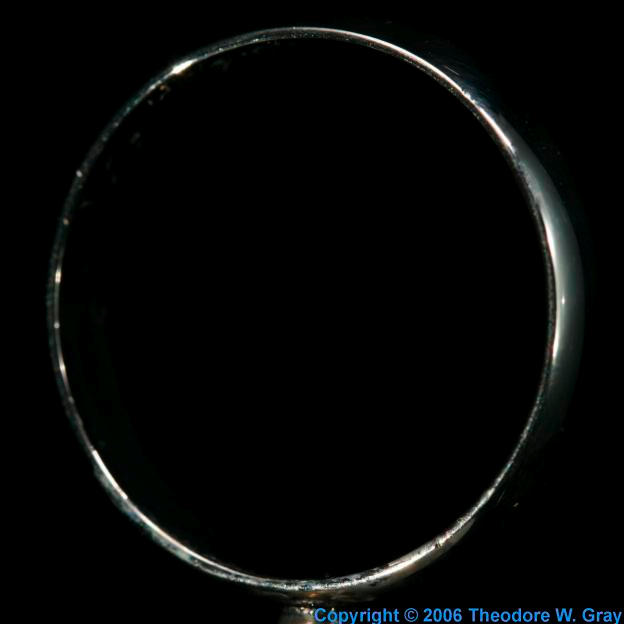

Palladium Ring
3D3DRing.
Palladium is potentially a nice metal to use for jewelry: It's less expensive than gold or platinum, and doesn't tarnish like silver. On the other hand, by those measures titanium or stainless steel are better still. But practicality is often not given much weight in jewelry, which may explain the relative scarcity of palladium trinkets.
Source: QVC
Contributor: QVC
Acquired: 15 January, 2006
Text Updated: 20 February, 2006
Price: $140
Size: 1"
Purity: >95%

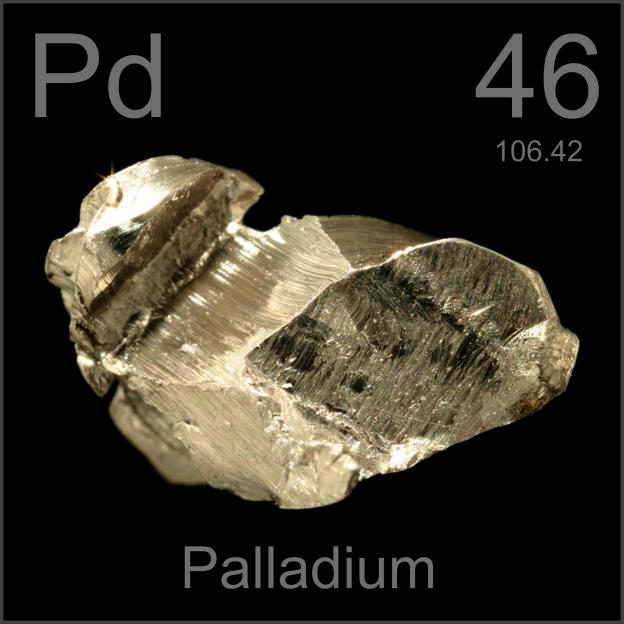

Palladium Poster sample
3D3DPoster sample.
This is the same sample as the one from the RGB set above, as it appears in my Photographic Periodic Table Poster. The sample photograph includes text exactly as it appears in the poster, which you are encouraged to buy a copy of.
Periodic Table Poster
Source: Max Whitby of RGB
Contributor: Max Whitby of RGB
Acquired: 25 January, 2003
Text Updated: 4 May, 2007
Price: Donated
Size: 0.2"
Purity: 99.9%

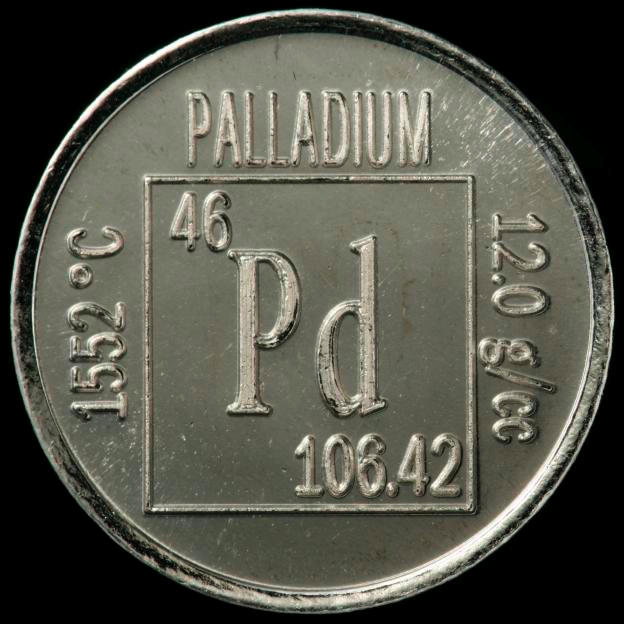

Palladium Element coin
3D3DElement coin.
Dave Hamric sells element samples under the name Metallium. He's developed a line of coins struck out of various common and uncommon metals: They are quite lovely, and very reasonably priced, considering the difficulty of creating some of them.

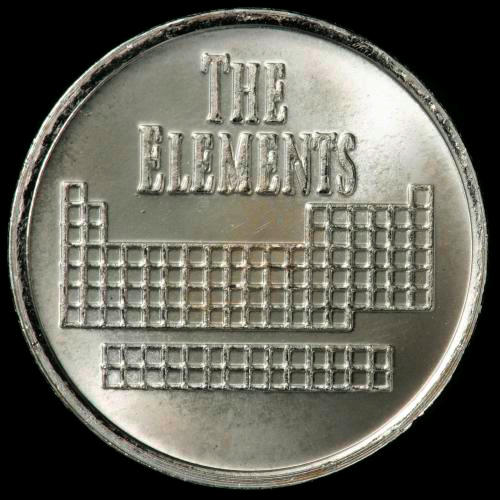

Here is the back side of this coin (click either picture to see it larger):

Click the Sample Group link below to see many other coins made of various elements, or click the link to his website above if you want to buy one like this.
Source: Dave Hamric
Contributor: Theodore Gray
Acquired: 1 December, 2006
Text Updated: 14 January, 2007
Price: $90
Size: 0.75"
Purity: >99%
Sample Group: Coins

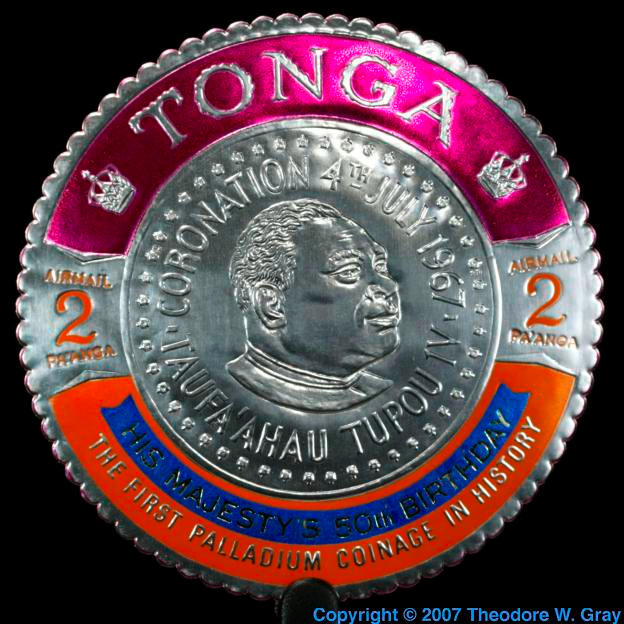

Palladium Coin or stamp?
3D3DCoin or stamp?
Is this a coin or is it a stamp? Hm. Well, let's read the description from the eBay listing:
This lot consists of:

- A COMPLETE set of the palladium coin stamps celebrating the 50th birthday of King Taufa'ahau IV on 4th July 1968.
- Scott 203 - 209, C40 - C46 & CO21 - CO24 / SG 243 - 256 + O29 - O32

All items are in excellent condition and are mounted mint unless stated.

Further information

The lot consists of real postage stamps from Tonga (A collection of Islands based in the South Pacific).

Each postage stamp design is embossed on palladium foil, backed with "sticky" paper inscribed overall with 'The Friendly Islands Tonga'.

Each circular postage stamp is imperforated and has a diameter ranging from 1.5 up to nearly 3 inches.

The design of each postage stamp features a coin that commemorates the 1967 Coronation of King Taufa'ahau IV.

The stamps in this lot were officially Overprinted by the government (i.e. an additional printing on a stamp that was not part of the original design) so that the stamps could also celebrating the 50th birthday of King Taufa'ahau IV on 4th July 1968.

The numbers Scott 203 - 209 and C40 - C46 / SG 243 - 256 refer to highly regarded stamp catalogue listings Scott being the USA norm and SG = Stanley Gibbons being the UK norm.

The total weight of these stamps is approximately 13g
So, basically, it's a stamp of a coin, except it's made of actual palladium metal, except it's really only a thin foil of metal on a paper backing. And you'd be insane to stick one on an envelope since they are (a) way too valuable and (b) wouldn't work as postage anyway, except maybe in Tonga.

Concerning the value, the listing says the set weighs 13g, but that includes the paper backing, the weight of palladium is much less.

This is a set of 18 stamps of various sizes, I photographed two of the nicest ones (see following sample).

Source: eBay seller mattpeters1
Contributor: Theodore Gray
Acquired: 11 March, 2007
Text Updated: 12 March, 2007
Price: $20
Size: 3"
Purity: >99%
Sample Group: Coins

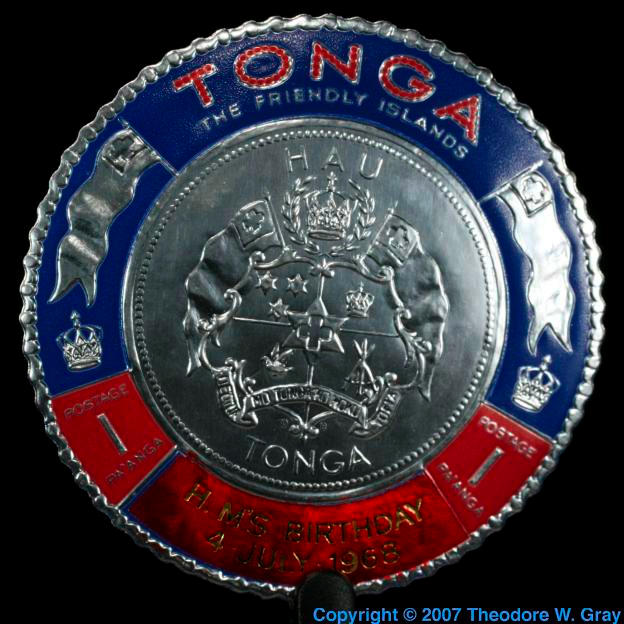

Palladium Coin or stamp?
3D3DCoin or stamp?
See previous sample for information about what this sample is.
Source: eBay seller mattpeters1
Contributor: Theodore Gray
Acquired: 11 March, 2007
Text Updated: 11 March, 2007
Price: $20
Size: 3"
Purity: >99%
Sample Group: Coins
Palladium Antique sponge
3D3DAntique sponge.
This sample came from the lab of a deceased chemist. Look at the date on it! Rec'd 10-5-27: It's over 80 years old. Fortunately precious metals don't go bad. Sponge, by the way, refers to very finely powdered material with high surface area. It looks like little balls, but if you touched it it would probably be very powdery. Palladium is used as a catalyst where surface area is important, that's probably why it was made into sponge form.
Addition and correction from the source:
Back in the early 20th century, we did not have the monolithic and ubiquitous chemical companies like the Alfa Aesars and Sigma Aldriches we see today, industrial powerhouses manufacturing specialized chemicals for research and laboratories. So, if a professor needed a metal or chemical such as this in a small amount, he (always a he back then) would either have to produce it at the university or laboratory where he was working, or appeal for some samples from a personal contact working one of the few companies dealing with uncommon materials, in this case, precious metals.

Palladium is used as a catalyst where surface area is important, so it may have been produced in sponge form for this reason, but it is more likely that this is the raw palladium directly after it was produced. Most of the laboratory-scale reductions of palladium from one of its compounds and even some variations of the industrial ore refining and isolation process give sponge-type metal, which is then either remelted into a larger ingot or powdered further.

Source: Ethan Currens
Contributor: Theodore Gray
Acquired: 19 November, 2008
Text Updated: 1 March, 2009
Price: Anonymous
Size: 2"
Purity: >99%

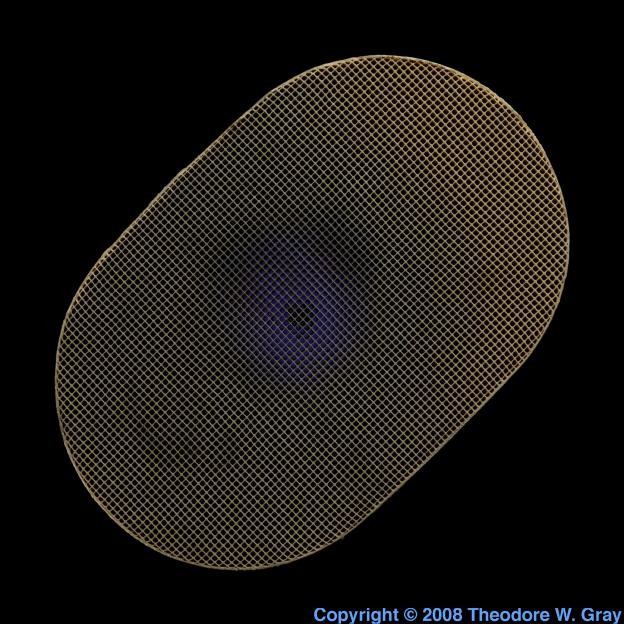

Palladium Catalytic converter honeycomb
3D3DCatalytic converter honeycomb.
Catalytic converters contain two ceramic honeycombs like this. Each is about 2" thick (look at the 3D rotation video to see the sides of it) and contains some mixture of palladium, rhodium, or platinum particles coated on the surface of the ceramic. These particles catalyze (hence the name) the burning of any residual unburned fuel coming out the engine exhaust pipe. I have a Popular Science column that shows how to use one of these to burn propane gas without a flame.
Source: Farm & Fleet
Contributor: Theodore Gray
Acquired: 8 February, 2009
Text Updated: 8 February, 2009
Price: $70
Size: 5"
Purity: <1%
Palladium Photo Card Deck of the Elements
3D3DPhoto Card Deck of the Elements.
In late 2006 I published a photo periodic table and it's been selling well enough to encourage me to make new products. This one is a particularly neat one: A complete card deck of the elements with one big five-inch (12.7cm) square card for every element. If you like this site and all the pictures on it, you'll love this card deck. And of course if you're wondering what pays for all the pictures and the internet bandwidth to let you look at them, the answer is people buying my posters and cards decks. Hint hint.
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 19 November, 2008
Text Updated: 21 November, 2008
Price: $35
Size: 5"
Composition: HHeLiBeBCNOFNeNaMg AlSiPSClArKCaScTiVCrMn FeCoNiCuZnGaGeAsSeBrKr RbSrYZrNbMoTcRuRhPdAg CdInSnSbTeIXeCsBaLaCePr NdPmSmEuGdTbDyHoErTm YbLuHfTaWReOsIrPtAuHgTl PbBiPoAtRnFrRaAcThPaUNp PuAmCmBkCfEsFmMdNoLrRf DbSgBhHsMtDsRgUubUutUuq UupUuhUusUuo

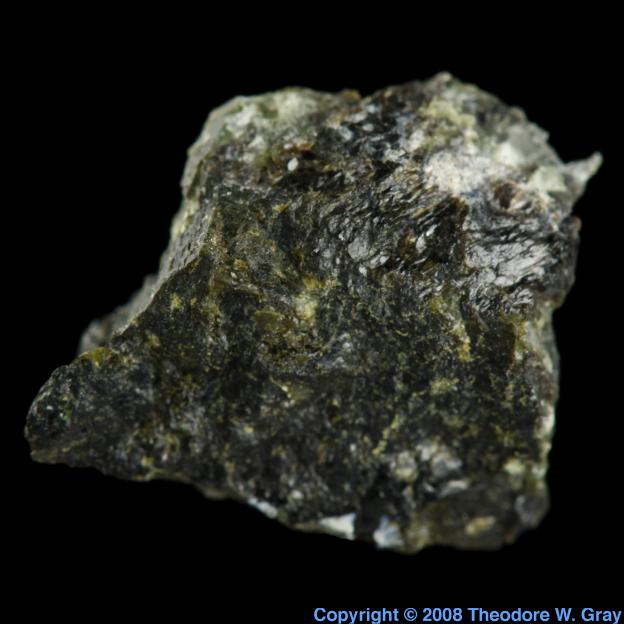

Palladium Native palladium from Jensan set
3D3DNative palladium from Jensan set.
This sample represents palladium in the "The Grand Tour of the Periodic Table" mineral collection from Jensan Scientifics. Visit my page about element collecting for a general description, or see photographs of all the samples from the set in a periodic table layout or with bigger pictures in numerical order.
Source: Jensan Scientifics
Contributor: Theodore Gray
Acquired: 28 January, 2009
Text Updated: 29 January, 2009
Price: Anonymous
Size: 1"
Composition: Pd

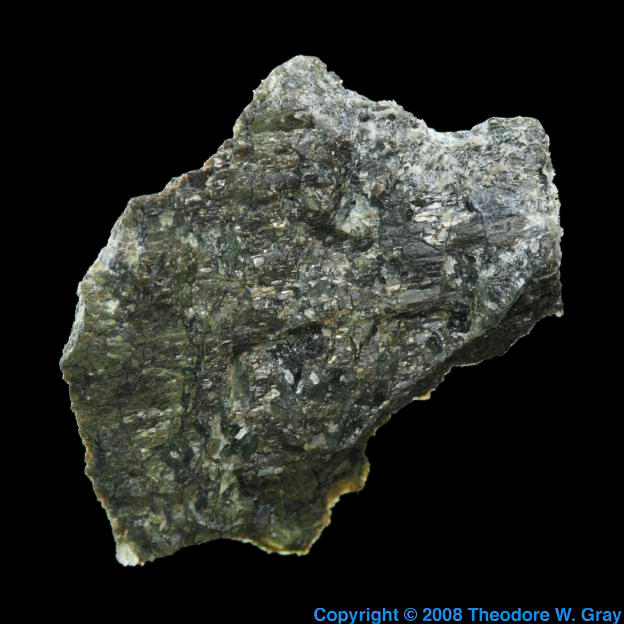

Palladium Palladobismutharsenide
3D3DPalladobismutharsenide.
A sample of the mineral Palladobismutharsenide.
Source: Jensan Scientifics
Contributor: Theodore Gray
Acquired: 17 October, 2009
Text Updated: 18 October, 2009
Price: Anonymous
Size: 0.5"
Composition: Pd2(As,Bi)

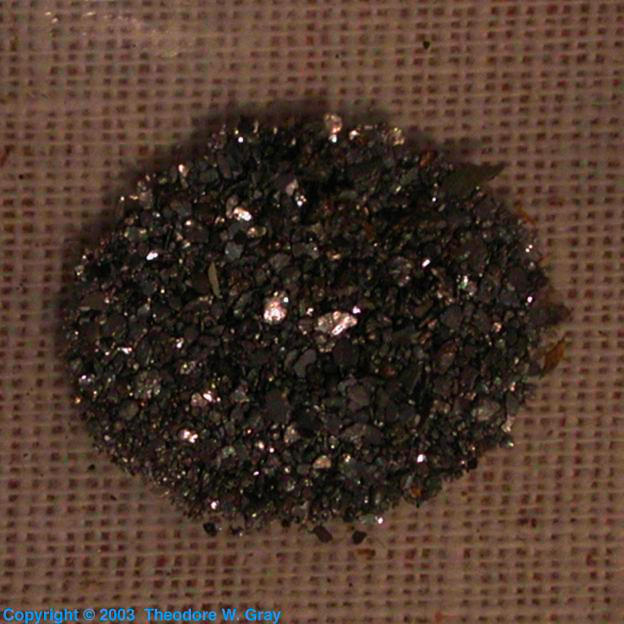

Palladium Natural granules
Natural granules. (External Sample)
Small dish of naturally occurring palladium granules.
Location: The Harvard Museum of Natural History
Photographed: 2 October, 2002
Size: 1
Purity: >90%
