It would be really neat if there were a metal that was liquid at room temperature, didn't stick to skin, and was safe to play with, stick your fingers in, float on, etc. Up until a couple of decades ago there was: Mercury. Unfortunately it turned out that the "safe" part wasn't quite accurate. Mercury has gone from being something kids play with to something considered so toxic that even mercury thermometers are being banned, because they might break.

Mercury in metallic form is dangerous, but it's organic compounds of mercury that are really bad. Once mercury gets into the environment it's very hard to get rid of, and it gets built into the food chain, which causes a cascade of problems as it works its way up to the food you're eating. Unfortunately, eliminating it from common use is not an overreaction.

This is a real shame, because it leaves the world without a good liquid metal. Gallium-indium alloys are liquid at room temperature, but they stick to everything and are unpleasant, though not dangerous, to handle. Cesium is also liquid just slightly above room temperature, but it explodes on contact with moisture, which is inconvenient. It's not clear that there is any possibility for improvement, because the set of liquid metals to choose from is extremely limited.
Compare at other websites:
periodictable.com
Wikipedia
WebElements
Museum Display
Minerals
Translations and Etymology
Science Fiction (Main Site)
Comics


Collections:
Minerals, Alloys, and Compounds
Elements Popular in Collections
Poster Samples
Elements at Walmart
Elements with External Samples
Samples with Rotatable Images
Samples with Sounds
Samples with High Resolution Spin Movies
Samples with Videos

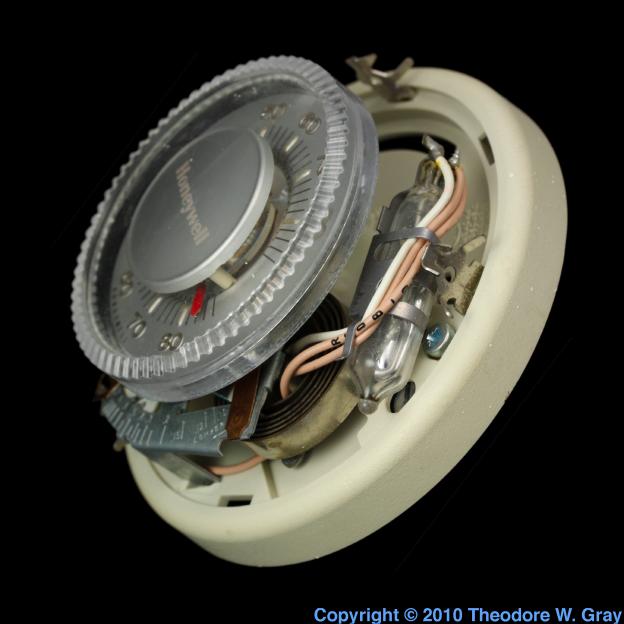

Mercury Tilt switch from old thermostat
3D3DTilt switch from old thermostat.
I replaced an old thermostat at our square house in Urbana, Illinois in late 2001, and this is the tilt switch from it. It had probably been there for decades. A thermostat works by mounting this kind of tilt switch on a coiled bi-metallic strip, which coils and uncoils slightly as the temperature changes. When the switch tilts out of level the mercury flows to one side or the other, turning on the heat or air-conditioning depending on the direction of tilt. The weight of the mercury tips the balance slightly further in the direction it went, providing a built-in hysteresis effect.

Reports Kathy Tattersall from Wolfram Research, Inc:
I just clicked on Mercury and saw the switch you used. It brought back fond memories of my Dad who used to invent so many gadgets that are now used in our everyday lives (but he never patented any of them!!) :(

Back in the mid to late 50's he made a mercury switch...it was a glass tube with the mercury in it and it was then connected by a long electrical cord to our TV so when commercials came on he would "tip" the switch and shut off the sound!!! He made one for my grandfather and uncles he even got fancy and made a wood box around the glass tube to protect the tube from breaking and the left over Mercury my brother and I used to play with!! (horrors!!) I loved to watch the mercury split then pull itself back together again!


Source: Hardware Store
Contributor: Theodore Gray
Acquired: 15 April, 2002
Text Updated: 11 August, 2007
Price: $10/new thermostat
Size: 1"
Purity: >95%
Mercury Vial of antique mercury
SoundVial of antique mercury.
This small glass vial came from Rob Raguet-Schofield's wife's coworker's parents who had it in their basement and didn't know what to do with it. They thought about burying it in the back yard but I took it off their hands instead.
You have got to listen to the sound of this sample.

This picture is out of date: I've since added more mercury that came from a leaking barometer I got at a school auction, and cleaned it all up by using a coffee filter with a pinhole in the bottom of it (a technique I learned from Timothy Brumleve). Amazingly, you can simply let dirty oxidized mercury drip through such a filter, and it comes out bright and shiny. The oxide is left clinging to the sides of the coffee filter. Of course, you wouldn't want to do that without protection against the mercury vapor and a proper way to dispose of the mercury contaminated filters.

Back in 1972 (October issue to be precise) National Geographic Magazine published a photograph of a man sitting on a pool of mercury. And I do mean on, not in. I've never forgotten that photo, and finally dug it up again (from their CD-ROM collection):

Of course, no one in their right mind, then or now, would expose themselves to this much mercury. But, man, doesn't it look like it would be an incredible experience? Mercury is so dense, and clings to itself so strongly, than the man floats on it like Styrofoam floats on water. The pressure inside a pool of mercury rises 13 times more rapidly than the pressure in a pool of water (because it is 13 times more dense). Imagine sticking your arm straight down into a pool of mercury: The pressure on your hand would be as high as if it were 20 feet under water. What must that feel like?

When I wrote the above, I never thought that anyone had actually tried it, but it turns out quite a few people have, and in the USA no less. A reader who wishes to remain anonymous send the following story:
I don't have to imagine!

I grew up in [location deleted] and my father worked in the high power tube division of [company name deleted]. They would periodically have open house tours. I remember well one at about age 7.

The plant where large [product name deleted] tubes were assembled was a large barn with a hard packed oily dirt floor. Some of these tubes were larger than 55 gallon drums; control rectifiers for pumped storage power plants, etc. There were open 55 gallon drums of mercury around to fill them. One of the tour demos was to see if you were able to completely immerse your arm in a drum of mercury. I remember the feeling of almost being lifted off the ground by the buoyancy of my arm deep in the barrel.

The floor was covered with puddles of mercury. People worked there 8-10 hours a day. I never heard of anyone being poisoned. Of course one wouldn't, would one.

My father occasionally brought home small amounts of mercury for me to play with. I had a couple of pounds at one time but gradually lost most of it. That was fifty years ago. I'm still here.
All I can say is, I really, really wish that mercury wasn't so poisonous!

Source: Rob Raguet-Schofield
Contributor: Rob Raguet-Schofield
Acquired: 22 May, 2002
Text Updated: 29 January, 2009
Price: Donated
Size: 3"
Purity: >95%

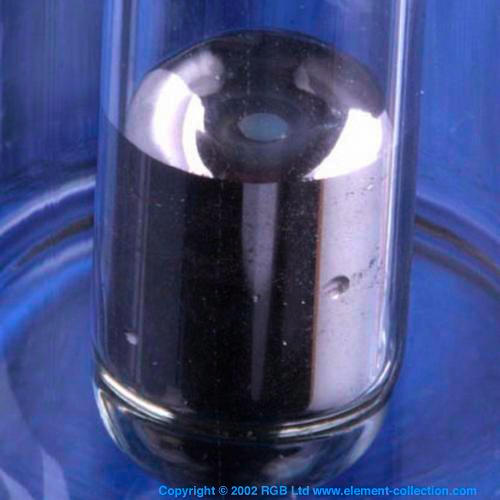

Mercury Sample from the RGB Set
Sample from the RGB Set.
The Red Green and Blue company in England sells a very nice element collection in several versions. Max Whitby, the director of the company, very kindly donated a complete set to the periodic table table.

To learn more about the set you can visit my page about element collecting for a general description or the company's website which includes many photographs and pricing details. I have two photographs of each sample from the set: One taken by me and one from the company. You can see photographs of all the samples displayed in a periodic table format: my pictures or their pictures. Or you can see both side-by-side with bigger pictures in numerical order.

The picture on the left was taken by me. Here is the company's version (there is some variation between sets, so the pictures sometimes show different variations of the samples):


Source: Max Whitby of RGB
Contributor: Max Whitby of RGB
Acquired: 25 January, 2003
Text Updated: 11 August, 2007
Price: Donated
Size: 0.2"
Purity: 99.99%
Mercury Sample from the Everest Set
Sample from the Everest Set.
Up until the early 1990's a company in Russia sold a periodic table collection with element samples. At some point their American distributor sold off the remaining stock to a man who is now selling them on eBay. The samples (except gases) weigh about 0.25 grams each, and the whole set comes in a very nice wooden box with a printed periodic table in the lid.

To learn more about the set you can visit my page about element collecting for a general description and information about how to buy one, or you can see photographs of all the samples from the set displayed on my website in a periodic table layout or with bigger pictures in numerical order.

Source: Rob Accurso
Contributor: Rob Accurso
Acquired: 7 February, 2003
Text Updated: 29 January, 2009
Price: Donated
Size: 0.2"
Purity: >99%
Mercury Blood pressure monitor
Blood pressure monitor.
A blood pressure monitor like this contains at least a cubic inch of mercury, far more than the typical thermometer. If spilled, that would be enough mercury to contaminate quite a lot of air or water. For that reason, such monitors should be treated carefully and ideally should be turned in to hazardous waste collection point in favor of an electronic model that uses no mercury.
This one came from an Amish auction: Understandably they prefer this type to the electronic type, but that doesn't make it any less toxic. Click the source link for a story about the auction.
Source: Herschberger Welding Auction
Contributor: Theodore Gray
Acquired: 14 September, 2003
Text Updated: 11 March, 2007
Price: $10
Size: 12"
Purity: 95%
Sample Group: Medical
Mercury Nearly full flask
3D3DNearly full flask.
You're probably not going to believe this, but I've wanted one of these since I was in my early teens. Really wanted one. I remember reading that the international unit of commerce in mercury was the "flask" which contained 76 pounds of mercury. I imagined this was something like a big barrel. Then at some point I learned that, no, a "flask" of mercury was actually quite small. Mercury is very dense (70% more dense than iron, for example), so 76 pounds of it is only about as big as a loaf of bread. Well, when I learned that, I really wanted one!
This is war surplus mercury that had been at DePauw University since about the 1950's until Dave Roberts, bless his heart, decided to give it to me. I was there with Max installing the new periodic table display in their Julian Science Center when Dave gave us a bunch of elements he felt were surplus to DePauw's needs, including this flask and several more bottles of mercury to help top it up. It was really nice of him to let me walk off with the stuff, but really I'm probably doing them a favor. Mercury isn't very expensive if you ever want some, and it is so toxic that disposing of it probably costs more than buying it. So having an excess on hand, as DePauw did, can be a significant liability, and now it's my liability instead of theirs.
Even though this cylinder is only about 3/4 full (it weighs 61 pounds total while full it would be 76 pounds plus the weight of the cylinder) it's heavy enough to be quite hard to lift, and the sloshing mercury is quite entertaining.
Source: Dave Roberts
Contributor: daverobers
Acquired: 1 November, 2003
Text Updated: 11 August, 2007
Price: Donated
Size: 12"
Purity: 99.9%

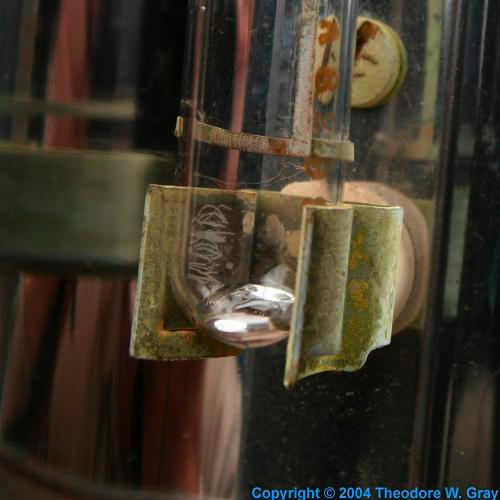

Mercury Contact thermostat
Contact thermostat.
This is a really neat, though broken, precision thermostat. It has a fine lead screw that allows you to adjust a very fine wire up and down. The wire is sticking down into the capillary tube of what is otherwise an ordinary mercury thermometer. When the mercury rises to the level of the wire it makes electrical contact with it, switching off the power to whatever heater the unit is controlling. This is is no doubt a much more accurate thermostat than the typical bi-metallic strip kind, and it is intended for scientific applications.
Source: Ursula Carlson
Contributor: Ursula Carlson
Acquired: 20 November, 2003
Price: Donated
Size: 12"
Purity: 99.9%
Mercury Mini element collection
Mini element collection.
This is a nice little set from the 1960's. The enclosed price list indicates it cost a few dollars, and the enclosed mercury sample indicates it predates current environmental concerns! Here's a picture of the whole 2-box set:
Jr Collection of Elements

Source: Blake Ferris
Contributor: Theodore Gray
Acquired: 15 July, 2004
Price: $61/set
Size: 1"
Purity: <50%
Mercury Triboelectric tube
Triboelectric tube.
This is a partially evacuated tube containing about 100 Torr of neon gas and about 5 grams of mercury. In a very dark room, after giving your eyes time to adjust, you can see flashes of light where the mercury is separating from the glass as the tube is rotated. Very strange.
Source: William Kolb
Contributor: William Kolb
Acquired: 12 August, 2004
Price: Donated
Size: 3"
Purity: 99%
Mercury Temperature compensating pendulum
3D3DTemperature compensating pendulum.
To keep accurate time, a pendulum clock needs a pendulum whose center of gravity remains constant. Unfortunately when the metal shaft of a pendulum warms up, it expands, shifting the center of gravity down and causing the clock to run slow. To compensate for this, glass vials containing mercury can be placed at the bottom of the pendulum. Not only is mercury nice and heavy, making for a good solid pendulum, it also expands more than most other metals on heating. Thus as the pendulum warms up the bottom of the vials moves down (because the shaft gets longer) but the mercury gets taller, shifting the center of gravity back up where it belongs. How much more accurate this made a clock I don't know: In any case a cheap electronic clock now is vastly more accurate than any of these ever were.
Source: eBay seller proclocks
Contributor: Theodore Gray
Acquired: 5 October, 2004
Price: $86
Size: 4"
Purity: 99%
Mercury Tanning lamp
Tanning lamp.
Mercury lamps give off UV light, which causes tanning, which causes skin cancer. Despite this, some people choose to expose their skin to UV artificially, so people will think they are wealthy enough to spend the winter in Barbados or something. But I digress. This old (50-60s?) lamp make by Sun-Kraft contains a huge amount of mercury, about a cubic centimeter, which is way more than typical mercury bulbs. I have no idea why, and the lamp doesn't work so I can't say whether it makes a difference.
Here is a close-up of the mercury in the bottom of the tube:

Reader Keith McIver sent me the following two links to downloadable archives of a hilarious and informative promotional film made in 1946 by the manufacturer of this lamp. It comes in two parts: Part 1 and Part 2. Ah, things were so simple, so optimistic back then. These days we worry about subtle issues, like the difference between when UV light is beneficial and when it's harmful. I suppose they probably worried about it back then too, just not in promotional films by the makers of UV lamps.
Source: Auction
Contributor: Theodore Gray
Acquired: 6 November, 2004
Text Updated: 11 August, 2007
Price: $7
Size: 12"
Purity: 99%
Sample Group: Medical
Mercury Museum-grade sample
3D3DMuseum-grade sample.
In early 2004 Max Whitby and I started selling individual element samples identical or similar to the samples we use in the museum displays we build. These are top-quality samples presented in attractive forms appropriate to the particular element. They are for sale from Max's website and also on eBay where you will find an ever-changing selection of samples (click the link to see the current listings).

This mercury tumbler was meant to be one of those samples, but it turns out that shipping large mercury ampules is prohibitively expensive. Until we find a solution to that problem, these tumbler machines are available only by special arrangement, and only for pickup in central Illinois. As an added element sample bonus, the base is cast of 99.99% pure zinc, poured in a four-part graphite mold I made with my milling machine. The tubes are made by the local university's glass shop, and I fill them with cleaned mercury and argon purge before flame-sealing the filling tube.

The machine rotates the tube at two revolutions per minute, allowing the mercury to pour smoothly down and over the indentations in the tube. It's quite lovely.

The rotation movie (click the turntable icon in the top right of this description) for this sample relies on the fact that the motor rotating the tube is a synchronous timing motor that runs at exactly two revolutions per minute. The turntable I use to photograph samples from all sides uses a similar synchronous timing motor. (See this picture of my rotation studio.) Normally I photograph each sample in one-degree increments, taking 360 images one every five seconds as the sample takes half an hour to make one complete revolution. For this sample I replaced the turntable motor with one that runs 6 times slower, so I could take 360 images in 30-second intervals as the machine as whole took three hours to make a complete revolution. The motors are locked to the frequency of the power line, and thus to each other, so the tube is in exactly the same position for each image, making it appear stationary even though it's in a position where the mercury is flowing downhill. It makes it look like a magic fountain that flows continuously without any means for the liquid to make it back up to the top.

Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 24 September, 2005
Text Updated: 11 August, 2007
Price: Negotiable
Size: 6"
Purity: >99%
Sample Group: RGB Samples
Mercury Dental amalgam dispenser
Dental amalgam dispenser.
This device is designed to mix a carefully measured amount of liquid mercury with a small pellet composed mostly of silver. The mercury and pellet are automatically dispensed into a mixing egg, which you shake to mix the two ingredients. Then you pack the resulting amalgam into someone's tooth, assuming you're a dentist. It is claimed that such amalgam fillings can remain in you for decades without releasing their toxic mercury into your body. Fine with me if you want to try it, but when I recently had to have a bunch of fillings replaced, I was happy to choose the more modern ceramic/polymer alternative.
I got this device on eBay, home of many slightly scary objects. It came with a full pound of high grade mercury metal, in what looks like an ordinary plastic bottle such as you might find containing eye drops or something. (A pound of mercury is very small, you see.) Needless to say it was not shipped according to the proper packaging and labeling requirements needed to legally ship such a large quantity of mercury. Unless, that is, there is a special exception for dental mercury, which would not surprise me one bit. A friend who works at a chemical company complains that a dentist removing a single amalgam filling and washing it down the drain releases, legally, more mercury contamination than their entire factory is permitted to release in a month.

Reader Andrzej Kasperowicz pointed out the following fascinating videos, which show mercury vapor wafting up from a disturbed amalgam filling:
http://youtube.com/watch?v=9ylnQ-T7oiA
http://iaomt.org/videos
http://youtube.com/watch?v=MfVsUuhoFWY
Kind of scary to see it so vividly. He also pointed out this absolutely fascinating study, which seems to demonstrate that cell phone or MRI radiation shortly after dental work with amalgam can accelerate the release of mercury. This is not as crazy as it might sound since the amalgam is conductive and could very well respond to radio and microwave radiation.
http://www.ncbi.nlm.nih.gov/pubmed/18819554
What I want to know is where did they find "fourteen female healthy University students who had not used mobile phones before the study"? Are there really that many university students in the country who have never used a cell phone? Seems unlikely. And why did they all need to be female?
Source: eBay seller kellypeterson
Contributor: Theodore Gray
Acquired: 30 September, 2005
Text Updated: 18 January, 2009
Price: $20
Size: 6"
Purity: >99%
Sample Group: Medical
Mercury Poster sample
Poster sample.
This is a small pool of mercury from my nearly full flask (see above), carefully poured onto a black surface and lit to bring out its shape. It appears in my Photographic Periodic Table Poster. The sample photograph includes text exactly as it appears in the poster, which you are encouraged to buy a copy of.
Periodic Table Poster
Source: Dave Roberts
Contributor: daverobers
Acquired: 1 November, 2003
Text Updated: 4 May, 2007
Price: Donated
Size: 2"
Purity: 99.9%
Mercury Thermostat switch
3D3DThermostat switch.
This is a small self-contained thermal switch: It make an electrical contact when the temperature rises above 60C. It works by having two small wires embedded in what amounts to a simple mercury thermometer. When the column of mercury reaches the second wire, the connection is made. Why build a switch this way rather than use a bi-metallic strip such as is used in common household thermostats, or an electronic sensor? Well, it's much more accurate than the bi-metallic strip, and it was probably made before electronic sensors were practical. (And even now, it's much simpler and probably more reliable than an electronic system. I don't know if switches like this are still made or commonly used today.)
Source: eBay seller tubesrus
Contributor: Theodore Gray
Acquired: 16 July, 2006
Text Updated: 5 December, 2006
Price: Donated
Size: 2"
Purity: 99.9%
Mercury Heavy-duty relay
3D3DHeavy-duty relay.
Another example of the use of mercury for its ability to make and break electrical contacts. This relay contains, safely (I hope!) sealed up inside it, a considerable quantity of mercury. (So much that you can hear and feel it sloshing around if you shake the relay.) Magnetic coils, when activated, tilt the mercury chamber back and forth to roll the mercury onto or off of the electrical contacts. Of course it relies on gravity, so it has to be mounted in the correct vertical orientation, and it wouldn't work in space. There are three identical units because this relay was meant to switch industrial three-phase power, which comes on three wires.
Source: eBay seller dr.starstone
Contributor: Theodore Gray
Acquired: 20 January, 2007
Text Updated: 11 February, 2007
Price: $16
Size: 5"
Purity: 99%
Mercury Silent light switch
3D3DSilent light switch.
The house I grew up in had switches like this one: They look like ordinary light switches, but when you flip them, there is no snap, no click, no feeling that anything has happened, and absolutely no sound. It just feels like you've moved a lever that didn't do anything. But moving that lever tilted a chamber containing a drop of mercury, tipping it onto or off of a pair of electrical contacts, and turning the light on or off. Neat for a bedroom, but so far as I know they are no longer legal due to the mercury content. At least I've never seen them in a hardware store, and these are old stock from eBay.
Source: eBay seller powerpoint-electrical-sales
Contributor: Theodore Gray
Acquired: 20 January, 2007
Text Updated: 11 February, 2007
Price: $2
Size: 4"
Purity: 99%
Mercury Dental mercury
3D3DDental mercury.
Mercury is used to this very day to make dental amalgams, tooth fillings made with a mixture of mercury and zinc. It's claimed that the mercury stays permanently locked in the filling and poses no risk, but do you really believe that? Last time I had fillings I asked them to use the alternative polymer-ceramic material. I have another sample of dental mercury which came with the necessary zinc pellets and mixing apparatus, but this bottle is much more attractive than the plastic eye dropper that came with that other one.

Reader Andrzej Kasperowicz pointed out the following fascinating videos, which show mercury vapor wafting up from a disturbed amalgam filling:
http://youtube.com/watch?v=9ylnQ-T7oiA
http://iaomt.org/videos
http://youtube.com/watch?v=MfVsUuhoFWY
Kind of scary to see it so vividly. He also pointed out this absolutely fascinating study, which seems to demonstrate that cell phone or MRI radiation shortly after dental work with amalgam can accelerate the release of mercury. This is not as crazy as it might sound since the amalgam is conductive and could very well respond to radio and microwave radiation.
http://www.ncbi.nlm.nih.gov/pubmed/18819554
What I want to know is where did they find "fourteen female healthy University students who had not used mobile phones before the study"? Are there really that many university students in the country who have never used a cell phone? Seems unlikely. And why did they all need to be female?
Source: Darrell Hamilton, MD
Contributor: Theodore Gray
Acquired: 16 March, 2007
Text Updated: 18 January, 2009
Price: $40
Size: 3"
Purity: 99.9%
Sample Group: Medical
Mercury Vacuum tube with mercury
3D3DVacuum tube with mercury.
I have no idea why this vacuum tube contains beads of mercury. If it gets hot in operation that mercury will vaporize and create a gas much better able to sustain an arc than is vacuum. That is the function of mercury in arc lamps, and presumably that is what it's here for as well.
Source: Max Cane
Contributor: Max Cane
Acquired: 11 August, 2007
Text Updated: 3 September, 2007
Price: Donated
Size: 5"
Purity: >90%
Mercury Compact fluorescent bulb
3D3DCompact fluorescent bulb.
Compact fluorescent bulbs save huge amounts of electricity. They are several times more efficient than old tungsten filament incandescent bulbs, and if everyone switched to using them it would cut out a significant fraction of all electricity usage. (And the light is nicer too, I think. After using daylight spectrum compact fluorescent bulbs for several years now I find tungsten light to be depressing and dingy: It makes everything look old, yellowed, and depressing.)
But there is one thing that worries people: Virtually all compact fluorescent bulbs contain a small amount of mercury. In principle this means that they should not be thrown out with household trash but rather taken to special recycling points. In reality few people know this, or act on it if they do.
Is the amount of mercury released into the environment from these bulbs a significant problem? Well, here's a calculation I'd like to see done: If the electricity comes from coal, which also contains mercury, does the reduction in electric use, and therefore coal-generated mercury, equal the amount of mercury in the bulb? My guess is probably not, the bulb has more mercury, but on the other hand the coal-generated mercury is released in vapor form into the air we breath, while the bulb mercury generally ends up buried where it does less harm.
Combined with all the other benefits of reduced electricity usage, it's hard to argue against compact fluorescent bulbs on environmental grounds. However, if one breaks in your house, there is something to be said for cleaning it up carefully, and in way that doesn't spread dust (i.e. with a wet paper towel, not a vacuum cleaner).
Source: Hardware Store
Contributor: Theodore Gray
Acquired: 8 March, 2008
Text Updated: 8 March, 2008
Price: $2
Size: 5"
Purity: <0.1%
Mercury Ceramic mercury jug
3D3DCeramic mercury jug.
Mercury is not something you want to spill: Cleanup of a large mercury spill can be hugely expensive because it can get into the smallest places, and it's toxic enough that every last trace needs to be removed.
So I'd say a fragile ceramic bottle would be about the last place I'd want to store 10 pounds or more of mercury, which is why this one is going to stay as empty as it arrived. In modern times bulk quantities of mercury are stored in iron cylinders that look at lot like compressed gas cylinders and are completely unbreakable.
Source: eBay seller ultimatecollectibles19
Contributor: Theodore Gray
Acquired: 14 June, 2008
Text Updated: 14 June, 2008
Price: $6
Size: 8"
Purity: 0%
Mercury 1000W Metal halide bulb
3D3D1000W Metal halide bulb.
This is a huge 1000W light bulb (about a foot long). The high efficiency of metal halide bulbs means that it gives off as much light as a 3-4000W incandescent bulb would: This is a seriously bright light! It goes in some lights I have in the yard next to my lake, which I got from an old gas station (the lights, not the lake). Basically they are small street lights, like you see lighting up car dealerships or, well, gas stations.
This bulb is listed under mercury because every metal halide bulb has a bit of mercury in it to form a conductive plasma for electricity to flow through. In addition to mercury a variety of rare earth metal salts and sometimes scandium are used to create a pleasing spectrum of light.
Source: Hardware Store
Contributor: Theodore Gray
Acquired: 1 December, 2008
Text Updated: 18 January, 2009
Price: $90
Size: 12"
Purity: <1%
Sample Group: Light Bulbs
Mercury Old mercury batteries
3D3DOld mercury batteries.
These are 4V mercury batteries of a type that is no longer available. Somewhat alarmingly a quick web search turned up a memo from a pace maker manufacturer advising people that these batteries, used in their products, were no longer available and warning people not to use similar 4.5V batteries instead, as they would damage the pacemaker and cause it to operate outside of its proper "output voltage amplitude". Ouch. The memo further advises people to send their pacemakers in to be modified for use with 9V batteries instead. Although these are external, rather than implanted, pacemakers, one still has to wonder how exactly a person is meant to mail in the pacemaker that is keeping their heart beating. What are they supposed to do, beat on their chest for a week or two until the unit is returned? Honey!-thump-is-thump-the-thump-mail-thump-here-thump-yet-thump?
As you can see there is one small, bare cell along with the three batteries, each of which contains three of those cells. Technically "battery" means multiple cells put together. A typical AA, C, or D battery is not really a battery at all but rather a single cell. 9V batteries, on the other hand, are genuine batteries because they contain 6 individual cells inside.
Source: Alec Wright
Contributor: Theodore Gray
Acquired: 1 December, 2008
Text Updated: 2 December, 2008
Price: $3
Size: 2"
Purity: <20%
Mercury Mercury jar
3D3DMercury jar.
A jar said to be used to store mercury in a dentist's office as late as the early 20th century.
Source: eBay seller xsellr8
Contributor: Theodore Gray
Acquired: 8 February, 2009
Text Updated: 8 February, 2009
Price: $23
Size: 7"
Purity: 0%

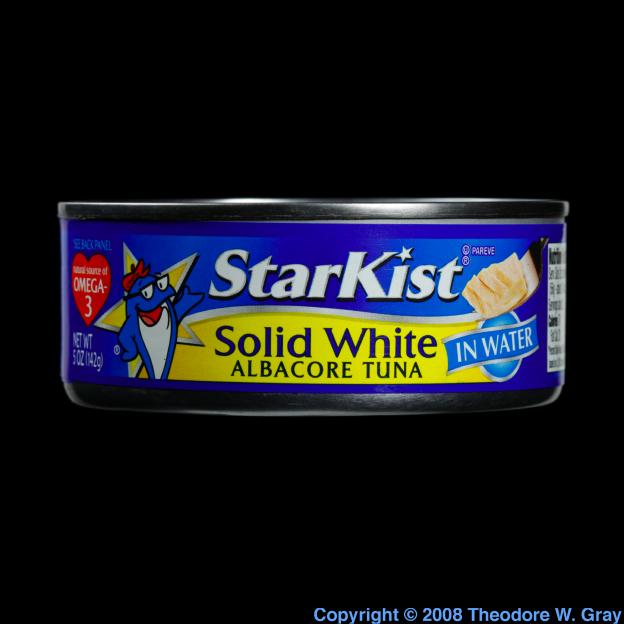

Mercury Tuna fish
3D3DTuna fish.
All fish contains mercury, and the larger, older, and fattier the fish is, the more mercury it's likely to have. Canned albacore tuna is big and old, though not terribly fatty, so it likely has an intermediate amount of mercury. Whether you think this is a problem depends on whether you trust the fish industry or the government less.
Please note (especially if you are a StarKist corporate lawyer) that I am not singling out this particular brand of tuna fish as having more mercury than any other, it's just what I found at my local store. In fact, it's the kind I eat quite a bit of.
Source: Walmart
Contributor: Theodore Gray
Acquired: 8 February, 2009
Text Updated: 8 February, 2009
Price: $2
Size: 4"
Purity: <0.001%
Mercury Mercury maze
3D3DMercury maze.
A relic from an earlier time when children's toys were made of mercury.
Source: eBay seller channel4steve
Contributor: Theodore Gray
Acquired: 2 April, 2009
Text Updated: 3 April, 2009
Price: $20
Size: 6"
Purity: 99%
Mercury Frozen mercury fish
Frozen mercury fish.
A fish made of solid mercury. Yes, solid mercury: If you cool it with liquid nitrogen, mercury becomes an ordinary solid metal very much like tin.
Shot by Mike Walker and I for my Popular Science column.
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 16 April, 2009
Text Updated: 17 April, 2009
Price: Donated
Size: 5"
Purity: 99%
Mercury Vermilion red paint
3D3DVermilion red paint.
Mercuric sulfide (HgS) is the traditional pigment known as Vermilion and China Red as it is the traditional red of Chinese art. Rather toxic.
Source: Eric Winter
Contributor: Eric Winter
Acquired: 17 April, 2009
Text Updated: 17 April, 2009
Price: Donated
Size: 1"
Purity: <30%
Mercury Mercury fever thermometer
Mercury fever thermometer.
Old mercury fever thermometer.
Source: eBay
Contributor: Theodore Gray
Acquired: 25 April, 2009
Text Updated: 14 June, 2009
Price: $5
Size: 6"
Purity: 99%
Mercury Sushi Roll
3D3DSushi Roll.
Fish, particularly fatty fish like tuna, tends to contain mercury, largely as a result of contamination from coal burning power plants. The higher the fat content, the more mercury, and in the case of sushi, the higher the price.
Source: Nick Mann
Contributor: Theodore Gray
Acquired: 13 June, 2009
Text Updated: 14 June, 2009
Price: $5
Size: 1"
Purity: <0.001%
Mercury Tuna sushi
3D3DTuna sushi.
Fish, particularly fatty fish like tuna, tends to contain mercury, largely as a result of contamination from coal burning power plants. The higher the fat content, the more mercury, and in the case of sushi, the higher the price.
Source: Nick Mann
Contributor: Theodore Gray
Acquired: 13 June, 2009
Text Updated: 14 June, 2009
Price: $5
Size: 2.5"
Purity: <0.001%
Mercury Mercury thermostat
3D3DMercury thermostat.
This is a mercury tilt switch thermostat of a type that was very common until quite recently. A bi-metallic strip coils and uncoils in response to changes in temperature, causing a glass ampule containing mercury to tip left or right, making or breaking a contact.
Source: Chris Anderson
Contributor: Chris Anderson
Acquired: 13 January, 2010
Text Updated: 13 January, 2010
Price: Donated
Size: 4"
Purity: 99%
Mercury Double-switch thermostat
3D3DDouble-switch thermostat.
This is a mercury tilt switch thermostat that contains two separate mercury tilt switches, one that tilts on when it gets too cold and one that tilts on when it gets too hot. This lets you set the heating and cooling systems to different temperatures.
Source: Chris Anderson
Contributor: Chris Anderson
Acquired: 13 January, 2010
Text Updated: 13 January, 2010
Price: Donated
Size: 7"
Purity: 99%
Mercury Cinnabar
3D3DCinnabar.
Nathan is a student who's going to visit my table this spring, and in advance of the visit he sent this lovely cinnabar sample. Cinnabar is the main ore of mercury: Simply heating it will drive off elemental mercury, which can then be condensed on a cold plate and collected. Mercury mines in Spain are famous for being so rich that liquid mercury can be seen literally dripping from the walls, but the bulk of it is bound up in cinnabar like this and must be roasted out.
(The cinnabar is the dark crystals, the rest is probably quartz or calcite.)
Source: Nathan Giguere
Contributor: Nathan Giguere
Acquired: 16 March, 2007
Text Updated: 9 May, 2007
Price: Donated
Size: 0.75"
Composition: HgS
Mercury Kleinite
3D3DKleinite.
Description from the source:
Kleinite ( Hg2 N (Cl SO4)\[CenterDot]n H2O hex.), McDermitt Mine, Humboldt Co., Nevada, USA. Yellow crusts on Quartz. 1,8x1x1 cm; 5 g with box.
Source: Simone Citon
Contributor: John Gray
Acquired: 14 October, 2008
Text Updated: 14 October, 2008
Price: Trade
Size: 0.7"
Composition: Hg2N(ClSO4).H2O
Mercury Cinnabar from Jensan Set
3D3DCinnabar from Jensan Set.
This sample represents mercury in the "The Grand Tour of the Periodic Table" mineral collection from Jensan Scientifics. Visit my page about element collecting for a general description, or see photographs of all the samples from the set in a periodic table layout or with bigger pictures in numerical order.
Source: Jensan Scientifics
Contributor: Theodore Gray
Acquired: 30 October, 2008
Text Updated: 31 October, 2008
Price: Anonymous
Size: 1"
Composition: HgS
Mercury Photo Card Deck of the Elements
3D3DPhoto Card Deck of the Elements.
In late 2006 I published a photo periodic table and it's been selling well enough to encourage me to make new products. This one is a particularly neat one: A complete card deck of the elements with one big five-inch (12.7cm) square card for every element. If you like this site and all the pictures on it, you'll love this card deck. And of course if you're wondering what pays for all the pictures and the internet bandwidth to let you look at them, the answer is people buying my posters and cards decks. Hint hint.
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 19 November, 2008
Text Updated: 21 November, 2008
Price: $35
Size: 5"
Composition: HHeLiBeBCNOFNeNaMg AlSiPSClArKCaScTiVCrMn FeCoNiCuZnGaGeAsSeBrKr RbSrYZrNbMoTcRuRhPdAg CdInSnSbTeIXeCsBaLaCePr NdPmSmEuGdTbDyHoErTm YbLuHfTaWReOsIrPtAuHgTl PbBiPoAtRnFrRaAcThPaUNp PuAmCmBkCfEsFmMdNoLrRf DbSgBhHsMtDsRgUubUutUuq UupUuhUusUuo
Mercury Livingstonite
3D3DLivingstonite.
Description from the source:
Livingstonite (Hg Sb4 S8 mon.), Municipio de Huitzuco, Guerrero, Mexico. Rare masses or micro acicular crystals on Anhydrite matrix. 3x2x2 cm; 12 g.
Source: Simone Citon
Contributor: John Gray
Acquired: 11 March, 2009
Text Updated: 12 March, 2009
Price: Trade
Size: 1.2"
Composition: HgSb4S8
Mercury Cinnabar
3D3DCinnabar.

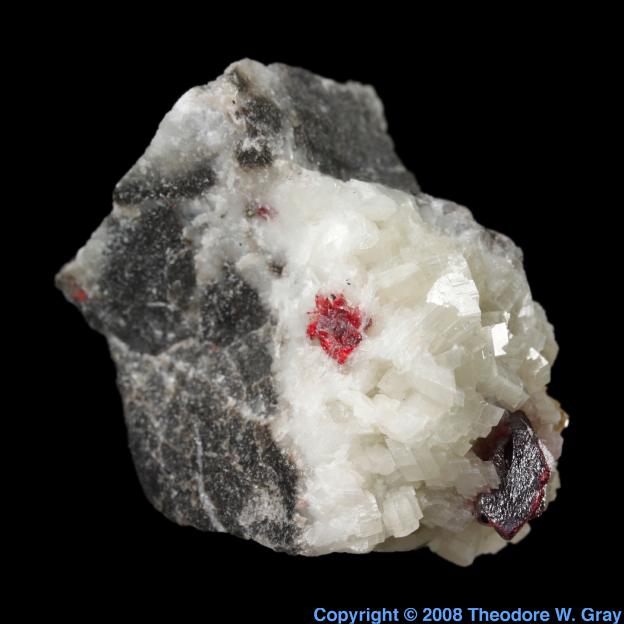

Description from the source:
Cinnabar (Hg S trig.), Tongren, Guizhou, China. Perfect, geminated crystals on Dolomite. 4x3x2,5 cm; 40 g;.
Source: Simone Citon
Contributor: John Gray
Acquired: 11 March, 2009
Text Updated: 12 March, 2009
Price: Trade
Size: 1.5"
Composition: HgS
Mercury Mercury droplets in feldspar
Mercury droplets in feldspar. (External Sample)
Remarkably, liquid mercury can be squeezed out of certain rocks.
Location: The Harvard Museum of Natural History
Photographed: 2 October, 2002
Size: 1
Purity: 5%
Mercury Mercury fountain at the Fundacio' Joan Miro'
VideoMercury fountain at the Fundacio' Joan Miro'. (External Sample)
In the Joan Miro Museum in Barcelona, Spain, next to a drawing by some guy called Picasso, there is a remarkable object: A mercury fountain, designed by Alexander Calder. Now that's what I call art.

Sadly I have not had a chance to visit this object yet, but I was alerted to it by Alexandra Cichecki of Amsterdam. I immediately started trying to think of reasons why my company should pay for me to go to a trade show in Spain, or at least somewhere in the general area, and I'm definitely going there eventually, hopefully with permission to make a QuickTime VR object of it.

When it was originally installed in the Spanish Pavilion at the 1937 World's Fair in Paris, it was just out in the open, and presumably people could touch the mercury. Amazingly, it's still on display to this day, but now it's located in its own sealed glass room. I wouldn't be surprised if people enter only wearing elaborate breathing apparatus, because that room must support about the highest concentration of mercury vapor it's possible to have in air.

Alexandra sent a collection of URLs with photographs of the fountain:
From the home page of David Eppstein
From the home page of Sonja Kueppers
From the Digial Imaging Project at Bluffton College
From the official Calder website
From PhiTar PhoTos
From PBS
The video for this sample is from borrowed the official Joan Miro Museum website and the sample photo is borrowed with permission from the home page of David Eppstein.

Location: Fundacio' Joan Miro'
Photographed: 10 January, 2003
Size: 60"
Purity: >95%
Periodic Table Poster   My periodic table poster is now available!Periodic Table PosterPeriodic Table PosterPeriodic Table Poster
