Contrary to popular belief, there is no such things as kryptonite. Krypton is a noble gas and as such it shouldn't form any compounds. But since this is chemistry rather than mathematics, it's not that tidy, and fluorides are krypton have been prepared, though they are unstable at room temperature.
Krypton gas is used in fancy flashlight bulbs because it allows the filament to run at a higher temperature, and hence more efficiently.
Krypton is also used in the fanciest, most energy-efficient double-pane insulated windows. Most such windows are filled with argon because it's a lot cheaper, but krypton is better. Heat transfer in windows occurs not primarily by conduction but rather by convection, and the more viscous gases tend to move around less, transferring less heat.
|
|
| |
|
|
|
|
Flashlight bulb.
High-intensity bulbs promote themselves as being filled with Krypton instead of the more common Argon filling. Purchased from Menards in May 2002.
Source: Hardware Store
Contributor: Theodore Gray
Acquired: 10 May, 2002
Price: $2
Size: 0.75"
Purity: >90%
|
|
|
|
|
|
![3D](../../Images/QTVR.JPG) Antique reagent flask.
I got a set of five different noble gas flasks on eBay for $13.50, which seemed like a good deal even though the seller described them as "probably empty". I very much doubt, however, that they are empty: At the bottom where the flask meets the tube, there is a tiny inner breakaway seal that is completely intact on all five of them. There's no visible way for the gas to have escaped. I've learned that one normally uses a steel ball, held up with a magnet, to break the seal: When you've hooked up and flushed out all the connecting tubes, you pull away the magnet and the ball drops onto the seal, breaking it and releasing the gas.
After many unworkable suggestions for proving whether the gases were still in there, several people came up with the idea of using a high voltage transformer, such as one finds in those now inexpensive plasma ball novelty lights, to try to set up an arc inside the flask, and identify the gas from the color of the discharge. Whether this is possible is sensitive to the pressure of the gas, which is not known.
Fortunately, it worked beautifully on three out of the five, and proved beyond a reasonable doubt that those three at least contain the gas claimed. The others almost certainly failed because the type and pressure of gas in them does not support an arc, not because they are empty. In fact, if they were empty, I would have gotten an arc, because the arc works through up to about half an inch of ordinary air.
You can see pictures of all the arcs along with a picture of the display stand I built for them (between 10PM and midnight of the evening they arrived) a using some of the same Carlson Maple used for the noble gas tiles on the table.
By the way, isn't it a cute oxymoron: Reagent-grade non-reactive gas.
Source: eBay seller tictoxx
Contributor: Theodore Gray
Acquired: 28 August, 2002
Text Updated: 29 January, 2009
Price: $3
Size: 9"
Purity: 99.95%
|
|
|
|
|
|
Mounted arc tube.
In some ways, gases are a pain from a sample point of view. With the exception of chlorine and bromine they all look exactly the same: Like nothing at all. My beautiful set of noble gas flasks is beautiful because of the flasks, not what's in them, which is indistinguishable from plain air or vacuum. (So much so that I got them for a bargain price because the seller thought the were empty.)
But set up an electric current through almost any gas, and things are completely different. The current ionizes the gas, and when the electrons fall back into their orbits, they emit light of very specific frequencies. These spectral lines can easily be seen with even a very cheap pocket spectroscope, and they give the glowing tubes very unusual colors. So unusual in fact that they are basically impossible to photograph. The pictures here simply don't look at all like the real colors of these tubes, which cannot be represented by the limited red, green, and blue mixtures available in computer or printed photographs.
David Franco helped arrange these tubes, which were made by a guy who specializes in noble gas tubes and Geissler tubes (click the source link). I have tubes installed in each of the five stable noble gas spots in the table, hooked up underneath to a high voltage transformer. They are really quite beautiful. On my Noble Rack page I have all the pictures collected, along with pictures of arcs I made in my other collection of noble gas flasks.
Source: Special Effects Neon
Contributor: Theodore Gray
Acquired: 22 November, 2002
Price: $35
Size: 2.5"
Purity: >90%
|
|
|
|
|
|
Sample from the RGB Set.
The Red Green and Blue company in England sells a very nice element collection in several versions. Max Whitby, the director of the company, very kindly donated a complete set to the periodic table table.
To learn more about the set you can visit my page about element collecting for a general description or the company's website which includes many photographs and pricing details. I have two photographs of each sample from the set: One taken by me and one from the company. You can see photographs of all the samples displayed in a periodic table format: my pictures or their pictures. Or you can see both side-by-side with bigger pictures in numerical order.

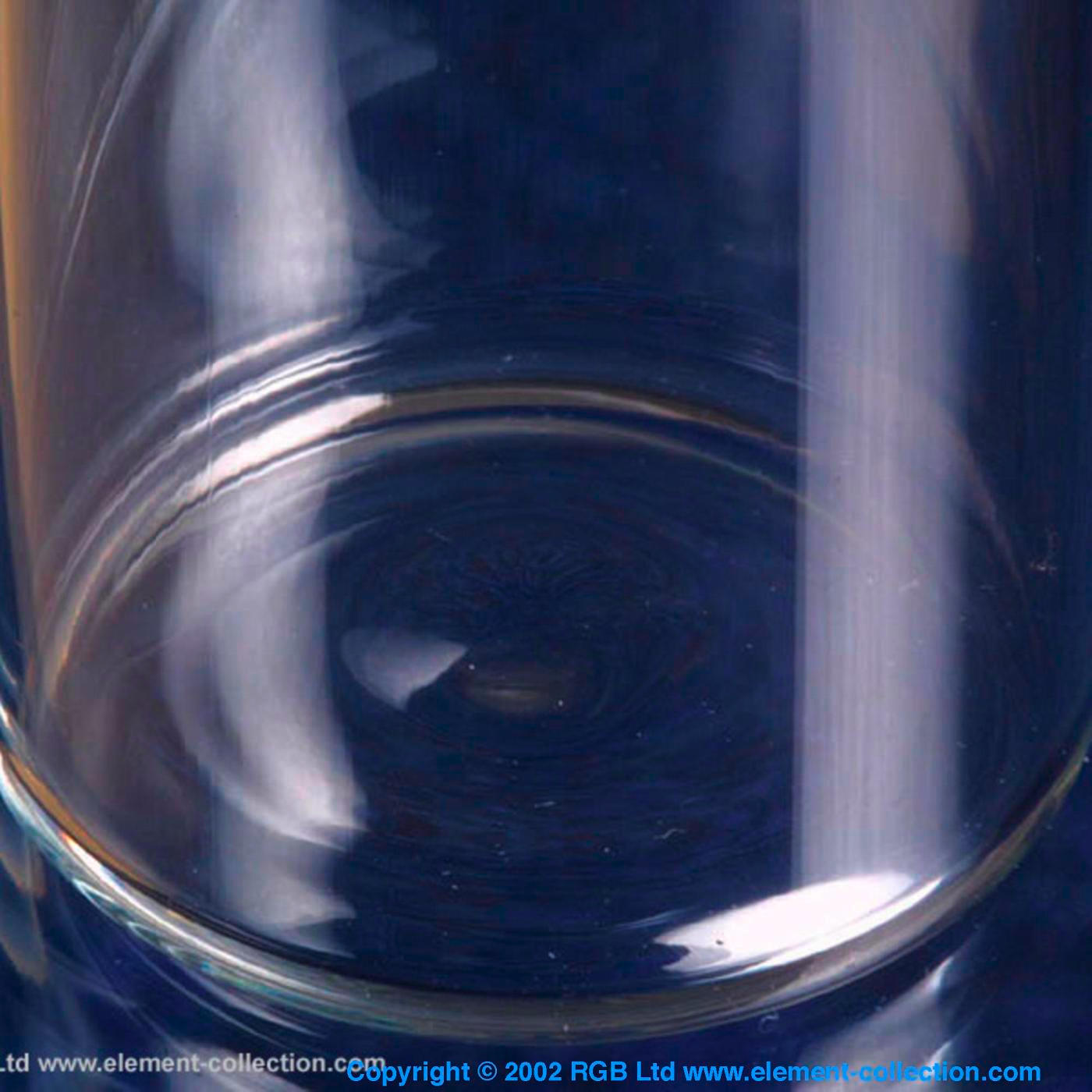

The picture on the left was taken by me. Here is the company's version (there is some variation between sets, so the pictures sometimes show different variations of the samples):
![](../../Samples/036.4b/s14.JPG)
Source: Max Whitby of RGB
Contributor: Max Whitby of RGB
Acquired: 25 January, 2003
Text Updated: 11 August, 2007
Price: Donated
Size: 0.2"
Purity: 99.9%
|
|
|
|
|
|
Sample from the Everest Set.
Up until the early 1990's a company in Russia sold a periodic table collection with element samples. At some point their American distributor sold off the remaining stock to a man who is now selling them on eBay. The samples (except gases) weigh about 0.25 grams each, and the whole set comes in a very nice wooden box with a printed periodic table in the lid.
To learn more about the set you can visit my page about element collecting for a general description and information about how to buy one, or you can see photographs of all the samples from the set displayed on my website in a periodic table layout or with bigger pictures in numerical order.
Source: Rob Accurso
Contributor: Rob Accurso
Acquired: 7 February, 2003
Text Updated: 29 January, 2009
Price: Donated
Size: 0.2"
Purity: >99%
|
|
|
|
|
|
![3D](../../Images/QTVR.JPG) Museum-grade sample.
In early 2004 Max Whitby and I started selling individual element samples identical or similar to the samples we use in the museum displays we build. These are top-quality samples presented in attractive forms appropriate to the particular element. They are for sale from Max's website and also on eBay where you will find an ever-changing selection of samples (click the link to see the current listings).
This is a lovely hand-made discharge tube, powered by a small high-voltage transformer. The color is characteristic of the noble gas contained in the tube, and of course the shape spells the element's atomic symbol. In our large periodic table displays we use larger versions of these tubes: The ones photographed here are about 3" tall, but the other ones look basically identical, just bigger.
I chose this sample to represent its element in my Photographic Periodic Table Poster. The sample photograph includes text exactly as it appears in the poster, which you are encouraged to buy a copy of.
![Periodic Table Poster](../../Posters/Poster2.400.JPG)
Source: Theodore Gray
Contributor: Theodore Gray
Acquired: 18 April, 2005
Text Updated: 11 August, 2007
Price: See Listing
Size: 4"
Purity: >99%
Sample Group: RGB Samples
|
|
|
|
|
|
![3D](../../Images/QTVR.JPG) Large krypton bulb.
This is a Sylvania K205PS25 incandescent lamp, said to be filled with krypton, and said to have a lifetime of 12,000 hours, which is huge for an incandescent bulb. It must operate at a very low filament temperature, and thus be extraordinarily inefficient at producing visible light.
Source: eBay seller maxiemumdeals
Contributor: Theodore Gray
Acquired: 8 February, 2009
Text Updated: 8 February, 2009
Price: $3
Size: 6"
Purity: 1%
|
|
|
|
|
|
|
|
|
|
|
|
|
|
